SK Tutucular

Anasayfa > SK Tutucular

Ürünlerimiz

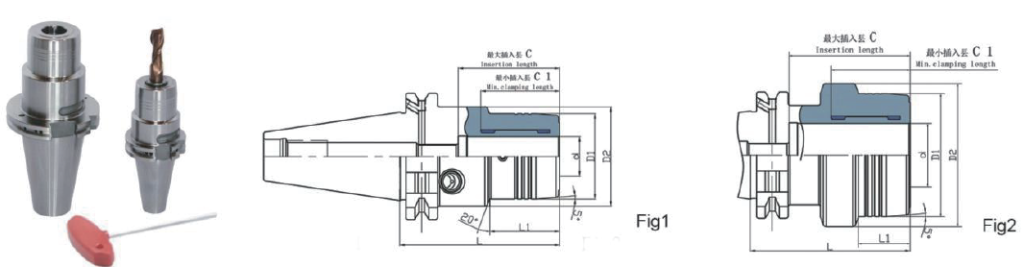

SK40_SK50_JHC

Type	Fig	d	D1	D2	L	L1	Insertion_Length_C1	Insertion_Length_C	N.W_kg
SK40-JHC06-80.5	1	6	28	50	80,5	35	26	40	1,2
SK40-JHC08-80.5	1	8	30	50	80,5	35	28	40	1,25
SK40-JHC10-80.5	1	10	32	50	80,5	35	33	45	1,3
SK40-JHC12-80.5	1	12	34	50	80,5	35	37	47	1,35
SK40-JHC16-80.5	1	16	38	50	80,5	35	40	51	1,35
SK40-JHC20-80.5	1	20	43	50	80,5	35	40	51	1,38
SK40-JHC25-80.5	2	25	57	66	80,5	26	51	61	1,5
SK40-JHC32-80.5	2	32	62	72	80,5	26	55	65	1,6
SK50-JHC06-90	1	6	30	52	90	40	26	40	3,55
SK50-JHC08-90	1	8	32	52	90	40	28	40	3,65
SK50-JHC10-90	1	10	34	52	90	42	33	45	3,7
SK50-JHC12-90	1	12	36	52	90	42	37	47	3,75
SK50-JHC16-90	1	16	41	52	90	40	40	51	3,8
SK50-JHC20-90	1	20	43	52	90	34,5	40	51	4
SK50-JHC25-105	1	25	54	66	105	43	58	86	4,04
SK50-JHC32-105	1	32	62	72	105	43	60	90	4,22

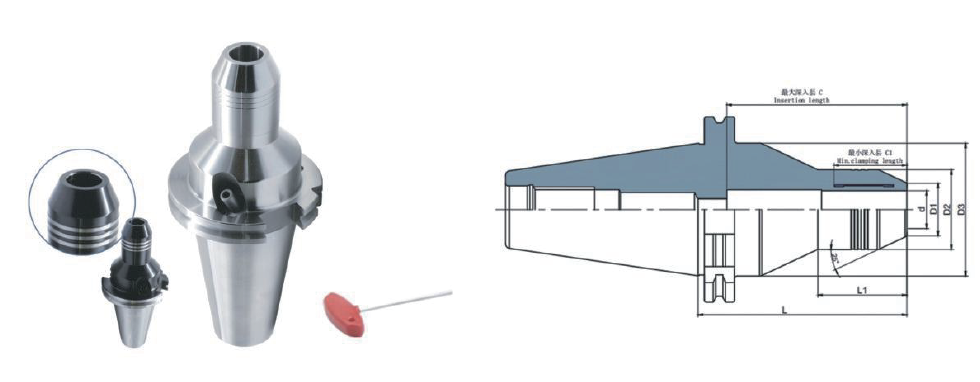

SK50_JHC_110

Type	d	D1	D2	D3	L	L1	Insertion_Length_C1	Insertion_Length_C	N.W_kg
SK50-JHC12-110	12	21,5	36,5	60	110	55	34	60	3,25
SK50-JHC16-110	16	25,5	39,5	60	110	60	39	60	3,4
SK50-JHC20-110	20	28	42	70	110	47	39	95	3,67
SK50-JHC25-110	25	33	50	70	110	55	45	95	3,77
SK50-JHC32-110	32	40	54	70	110	62	50	95	3,85
