BBT/BT Tutucular

Anasayfa > BBT/BT Tutucular

Ürünlerimiz

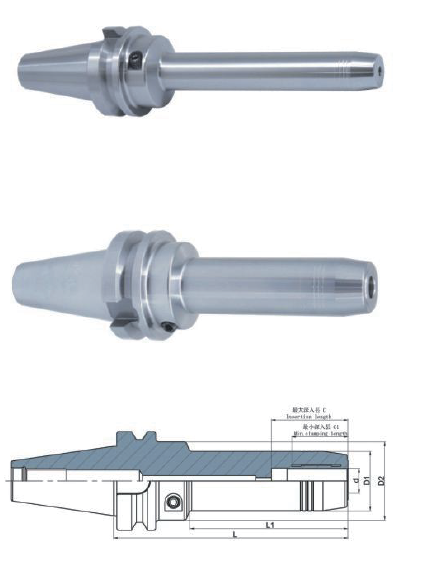

BT30 BT40 JHC_B

Type	d	D1	D2	L	L1	Insertion_Length_C1	Insertion_Length_C	N.W_kg
BT30-JHC04B-120	4	26	46	120	70	24	35	1,1
BT30-JHC06B-120	6	26	46	120	70	30	48	1,07
BT30-JHC08B-120	8	28	46	120	70	31	48	0,9
BT30-JHC10B-120	10	30	46	120	70	33	50	0,9
BT40-JHC04B-140	4	26	46	140	60	24	35	2
BT40-JHC06B-140	6	26	46	140	60	30	48	2,1
BT40-JHC08B-140	8	32	46	140	60	31	48	2,1
BT40-JHC10B-140	10	32	46	140	60	33	50	2,2

BT30,40,50 JHC

Type	d	D1	D2	D	L	L1	Insertion_Length_C1	Insertion_Length_C	N.W_kg
BT30-JHC04S-90	4	14	25	42	90	50	19	113	0.66
BT30-JHC06S-90	6	14	25	42	90	50	25	113	0.65
BT30-JHC08S-90	8	17	28	42	90	50	31	113	0.67
BT30-JHC10S-90	10	19	30	44	90	50	33	113	0.7
BT30-JHC12S-90	12	21	32	46	90	50	36	113	0.72
BT40-JHC04S-90	4	14	25	38	90	50	19	125	1.3
BT40-JHC06S-110	6	14	27	38	110	60	25	145	1.4
BT40-JHC08S-110	8	17	30	40	110	60	31	145	1.4
BT40-JHC10S-110	10	19	32	42	110	60	33	145	1.4
BT40-JHC12S-110	12	21	34	44	110	60	36	145	1.4

BT30/BT40 JHC_S

Type	d	D1	D2	D	L	L1	Insertion_Length_C1	Insertion_Length_C	N.W_kg
BT30-JHC04S-90	4	14	25	42	90	50	19	113	0.66
BT30-JHC06S-90	6	14	25	42	90	50	25	113	0.65
BT30-JHC08S-90	8	17	28	42	90	50	31	113	0.67
BT30-JHC10S-90	10	19	30	44	90	50	33	113	0.7
BT30-JHC12S-90	12	21	32	46	90	50	36	113	0.72
BT40-JHC04S-90	4	14	25	38	90	50	19	125	1.3
BT40-JHC06S-110	6	14	27	38	110	60	25	145	1.4
BT40-JHC08S-110	8	17	30	40	110	60	31	145	1.4
BT40-JHC10S-110	10	19	32	42	110	60	33	145	1.4
BT40-JHC12S-110	12	21	34	44	110	60	36	145	1.4

BT40_JHC_S150

Type	d	D1	D2	D	L	L1	L2	Insertion_Length_C1	Insertion_Length_C	N.W_kg
BT40-JHC06S-150	6	14	26	48	150	57	85	25	185	1,6
BT40-JHC08S-150	8	17	28	50	150	52	85	31	185	1,7
BT40-JHC10S-150	10	19	30	50	150	52	85	33	185	1,7

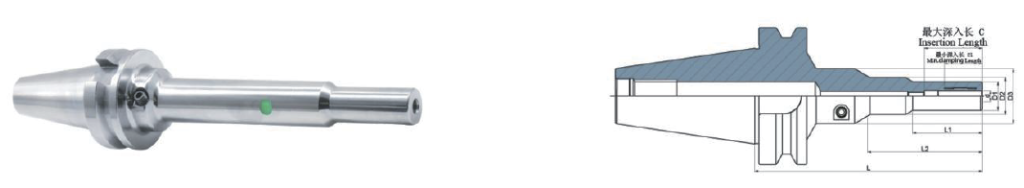

BT40/BT50 JHC_LS

Type	Fig	d	D1	D2	L	L1	Insertion_Length_C1	Insertion_Length_C	N.W_kg
BT40-JHC04-75	1	4	26	46	75	24	23		1.29
BT40-JHC06-75	1	6	28	46	75	30	29	46	1.27
BT40-JHC06-90	1	6	28	46	90	30	29	46	1.37
BT40-JHC06-120	1	6	28	46	120	30	29	46	1.8
BT40-JHC08-75	1	8	30	48	75	30	30	46	1.29
BT40-JHC08-90	1	8	30	48	90	30	30	46	1.43
BT40-JHC08-120	1	8	30	48	120	30	30	46	1.85
BT40-JHC10-75	1	10	36	52	95	26	38	57	1.43
BT40-JHC10-90	1	10	36	52	90	40	38	57	1.53
BT40-JHC10-120	1	10	36	52	120	40	38	57	1.95
BT40-JHC12-75	1	12	38	54	75	26	38	57	1.46
BT40-JHC12-90	1	12	38	54	90	40	38	57	1.58
BT40-JHC12-120	1	12	38	54	120	40	38	57	2.05
BT40-JHC14-75	1	14	40	56	75	28	42	57	1.5
BT40-JHC14-90	1	14	40	56	90	40	42	57	1.65
BT40-JHC16-75	1	16	42	58	75	26	46	75	1.5
BT40-JHC16-90	1	16	42	58	90	40	46	75	1.65
BT40-JHC16-120	1	16	42	58	120	40	46	75	2.3
BT40-JHC18-75	1	18	44	59	75	25	45	75	1.5
BT40-JHC18-90	1	18	44	59	90	40	45	75	1.65
BT40-JHC20-75	1	20	46	59	75	26	46	75	1.52
BT40-JHC20-90	1	20	46	60	90	40	46	75	1.7
BT40-JHC20-120	1	20	46	60	120	40	46	75	2.32
BT40-JHC23-150	1	23	50	60	150	47	40	52.5	2.35
BT40-JHC25-105	2	25	52	62	105	55	46	80	2.2
BT40-JHC32-105	2	32	62	72	105	44	58	90	2.3

Type	d	D1	D2	L	L1	Insertion_Length_C1	Insertion_Length_C	N.W_kg
BT50-JHC06-105	6	28	46	105	25.0	29	46	4.08
BT50-JHC08-105	8	30	48	105	25.0	30	46	4.12
BT50-JHC10-105	10	36	52	105	26.0	36	57	4.24
BT50-JHC12-105	12	38	54	105	26.0	38	57	4.32
BT50-JHC14-105	14	40	56	105	25.0	44	75	4.4
BT50-JHC16-105	16	42	58	105	26.0	46	75	4.45
BT50-JHC18-105	18	44	59	105	26.0	44	75	4.44
BT50-JHC20-105	20	46	60	105	26.0	46	75	4.5
BT50-JHC20-150	20	46	60	150	26.0	46	75	4.85
BT50-JHC25-120	25	52	62	120	56.0	50	80	4.67
BT50-JHC32-120	32	62	72	120	43.0	60	90	5.08
BT50-JHC32-200	32	62	72	200	42.5	60	90	7.46
BT50-JHC06-150	6	28	46	150	25.0	29	46
BT50-JHC08-150	8	30	48	150	25.0	30	46
BT50-JHC10-150	10	36	52	150	25.0	36	57
BT50-JHC12-150	12	38	54	150	25.0	36	57
BT50-JHC16-150	16	42	58	150	25.0	44	75
