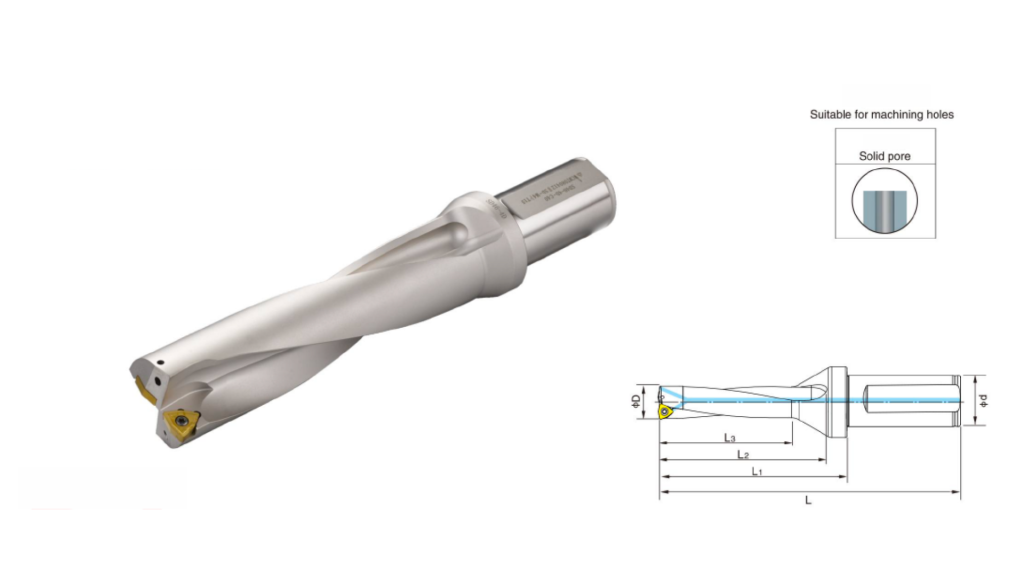

WC Serisi U-Driller
Anasayfa >
WC Serisi U-Driller
Ürünlerimiz
- Karbür Torna Uçları
- Karbür Freze Uçları
- İç Çap / Kanal Tornalama Takımları
- Takma Uçlu Matkaplar
- Kılavuzlar
- Çapak Alma Takımları
- Tutucular
- Kumlama Sarf Malzemeleri
- Yüzey İşlem Sarf Malzemeleri
- Kumlama Ekipmanları
- Boyama Ekipmanları
- Kumlama ve Boyama Aksesuarları
- Kesme Diskleri
- Flap Diskler
- Zımpara Diskleri
WC_Serisi_02D
| Cat.No | D | L | L1 | L2 | L3 | d | Insert | Screw | Wrench |
| WC14-020-C25 | 14.0 | 106 | 50 | 45.0 | 28.0 | 25 | WCMX 03 02 | 08 | M2.5X5 |
| WC14.5-02D-C25 | 14.5 | 106 | 50 | 45.0 | 28.0 | 25 | WCMX 03 02 | 08 | M2.5X5 |
| WC15-020-C25 | 15.0 | 108 | 52 | 46.5 | 30.0 | 25 | WCMX 03 02 | 08 | M2.5X5 |
| WC15.5-020-C25 | 15.5 | 108 | 52 | 46.5 | 30.0 | 25 | WCMX 03 02 | 08 | M2.5X5 |
| WC16.5-020-C25 | 16.5 | 111 | 55 | 49.5 | 32.0 | 25 | WCMX 03 02 | 08 | M2.5X5 |
| WC17-020-C25 | 17.0 | 113 | 57 | 51.5 | 34.0 | 25 | WCMX 03 02 | 08 | M2.5X5 |
| WC17.5-020-C25 | 17.5 | 113 | 57 | 51.5 | 34.0 | 25 | WCMX 03 02 | 08 | M2.5X5 |
| WC18-020-C25 | 18.0 | 115 | 59 | 53.5 | 36.0 | 25 | WCMX 03 02 | 08 | M2.5X5 |
| WC18.5-020-C25 | 18.5 | 115 | 59 | 53.5 | 36.0 | 25 | WCMX 03 02 | 08 | M2.5X5 |
| WC19.5-020-C25 | 19.5 | 116 | 60 | 54.5 | 38.0 | 25 | WCMX 03 02 | 08 | M2.5X5 |
| WC21-020-C25 | 21.0 | 121 | 65 | 59.5 | 42.0 | 25 | WCMX 03 02 | 08 | M2.5X5 |
| WC21.5-020-C25 | 21.5 | 121 | 65 | 59.5 | 42.0 | 25 | WCMX 03 02 | 08 | M2.5X5 |
| WC22.5-020-C25 | 22.5 | 120 | 64 | 58.5 | 44.0 | 25 | WCMX 03 02 | 08 | M2.5X5 |
| WC24-020-C25 | 24.0 | 127 | 71 | 65.5 | 48.0 | 25 | WCMX 03 02 | 08 | M2.5X5 |
| WC24.5-020-G25 | 24.5 | 127 | 71 | 65.5 | 48.0 | 25 | WCMX 03 02 | 08 | M2.5X5 |
| WC25.5-02D-C32 | 25.5 | 135 | 75 | 69.0 | 50.0 | 32 | WCMT 03 02 | 08 | M2.5X5 |
| WC27-020-C32 | 27.0 | 141 | 81 | 75.0 | 54.0 | 32 | WCMT 05 03 | 08 | M3.0X7 |
| WC28-020-C32 | 28.0 | 141 | 81 | 75.0 | 56.0 | 32 | WCMT 05 03 | 08 | M3.0X7 |
| WC29-020-C32 | 29.0 | 143 | 83 | 77.0 | 58.0 | 32 | WCMT 05 03 | 08 | M3.0X7 |
| WC31-020-C32 | 31.0 | 145 | 85 | 79.0 | 62.0 | 32 | WCMT 05 03 | 08 | M3.0X7 |
| WC33-02D-C32 | 33.0 | 149 | 89 | 83.0 | 66.0 | 32 | WCMT 05 03 | 08 | M3.0X7 |
| WC34-020-C32 | 34.0 | 151 | 91 | 85.0 | 68.0 | 32 | WCMT 05 03 | 08 | M3.0X7 |
| WC36-020-C32 | 36.0 | 155 | 95 | 89.0 | 72.0 | 32 | WCMT 05 03 | 08 | M3.0X7 |
| WC37-020-C32 | 37.0 | 159 | 99 | 93.0 | 74.0 | 32 | WCMT 06 T3 | 08 | M3.5X8 |
| WC39-020-C32 | 39.0 | 161 | 101 | 95.0 | 78.0 | 32 | WCMT 06 T3 | 08 | M3.5X8 |
| WC40-020-C32 | 40.0 | 163 | 103 | 97.0 | 32 | 06 | WCMT T3 | 08 | M3.5X8 |
| WC42-020-C40 | 42.0 | 162 | 112 | 106.0 | 84.0 | 40 | WCMT 06 T3 | 08 | M3.5X8 |
| WC45-020-C40 | 45.0 | 168 | 118 | 112.0 | 90.0 | 40 | WCMT 06 T3 | 08 | M3.5X8 |
| WC47-020-C40 | 47.0 | 192 | 122 | 116.0 | 94.0 | 40 | WCMT 06 T3 | 08 | M3.5X8 |
| WC48-020-C40 | 48.0 | 194 | 124 | 118.0 | 96.0 | 40 | WCMT 06 T3 | 08 | M3.5X8 |
| WC49-020-C40 | 49.0 | 196 | 126 | 120.0 | 98.0 | 40 | WCMT 06 T3 | 08 | M3.5X8 |
| WC50-020-C40 | 50.0 | 198 | 128 | 122.0 | 100.0 | 40 | WCMT 08 04 | 12 | M4.0X10 |
| WC51-020-C40 | 51.0 | 200 | 130 | 124.0 | 102.0 | 40 | WCMT 08 04 | 12 | M4.0X10 |
| WC53-020-C40 | 53.0 | 204 | 134 | 128.0 | 106.0 | 40 | WCMT 08 04 | 12 | M4.0X10 |
| WC54-020-C40 | 54.0 | 206 | 136 | 130.0 | 108.0 | 40 | WCMT 08 04 | 12 | M4.0X10 |
| WC56-020-C40 | 56.0 | 210 | 140 | 134.0 | 112.0 | 40 | WCMT 08 04 | 12 | M4.0X10 |
| WC57-020-C40 | 57.0 | 212 | 142 | 136.0 | 114.0 | 40 | WCMT 08 04 | 12 | M4.0X10 |
| WC59-02D-C40 | 59.0 | 216 | 146 | 140.0 | 118.0 | 40 | WCMT 08 04 | 12 | M4.0X10 |
| WC60-020-C40 | 60.0 | 220 | 150 | 140.0 | 120.0 | 40 | WCMT 08 04 | 12 | M4.0X10 |
WC_Serisi_03D
| Cat.No | D | L | L1 | L2 | L3 | d | Insert | Screw | Wrench |
| WC14-03D-C25 | 14.0 | 122.1 | 66.0 | 44.8 | 25.0 | 03 | WCMX 02 08 | M2,5×5 | T8 |
| WC14.5-03D-C25 | 14.5 | 121.0 | 65.0 | 59.5 | 43.5 | 25.0 | WCMX 03 02 08 | M2,5×5 | T8 |
| WC15-03D-C25 | 15.0 | 122.0 | 66.0 | 60.5 | 45.0 | 25.0 | WCMX 03 02 08 | M2,5×5 | T8 |
| WC15.5-03D-C25 | 15.5 | 123.0 | 67.0 | 61.5 | 46.5 | 25.0 | WCMX 03 02 08 | M2,5×5 | T8 |
| WC16-03D-C25 | 16.0 | 125.0 | 69.0 | 63.5 | 48.0 | 25.0 | WCMX 03 02 08 | M2,5×5 | T8 |
| WC16.5-03D-C25 | 16.5 | 127.0 | 71.0 | 65.5 | 49.5 | 25.0 | WCMX 03 02 08 | M2,5×5 | T8 |
| WC17-03D-C25 | 17.0 | 128.5 | 72.0 | 67.0 | 8.0 | 25.0 | WCMX 03 02 08 | M2,5×5 | T8 |
| WC17.5-03D-C25 | 17.5 | 130.0 | 74.0 | 68.5 | 31.0 | 25.0 | WCMX 03 02 08 | M2,5×5 | T8 |
| WC18-03D-C25 | 18.0 | 131.5 | 76.0 | 70.0 | 54.0 | 25.0 | WCMX 03 02 08 | M2,5×5 | T8 |
| WC18.5-03D-C25 | 18.5 | 133.0 | 77.0 | 71.5 | 55.5 | 25.0 | WCMX 03 02 08 | M2,5×5 | T8 |
| WC19-03D-C25 | 19.0 | 134.0 | 78.0 | 72.5 | 57.0 | 25.0 | WCMX 03 02 08 | M2,5×5 | T8 |
| WC19.5-03D-C25 | 19.5 | 135.0 | 79.0 | 73.5 | 58.5 | 25.0 | WCMX 03 02 08 | M2,5×5 | T8 |
| WC20-03D-C25 | 20.0 | 137.0 | 81.0 | 75.5 | 60.0 | 25.0 | WCMX 03 02 08 | M2,5×5 | T8 |
| WC20.5-03D-C25 | 20.5 | 139.0 | 83.0 | 77.5 | 61.5 | 25.0 | WCMX 03 02 08 | M2,5×6 | T8 |
| WC21-03D-C25 | 21.0 | 140.5 | 84.0 | 79.0 | 63.0 | 25.0 | WCMX 04 02 08 | M2,5×6 | T8 |
| WC21.5-03D-C25 | 21.5 | 142.0 | 86.0 | 80.5 | 64.5 | 25.0 | WCMX 04 02 08 | M2,5×6 | T8 |
| WC22-03D-C25 | 22.0 | 143.5 | 88.0 | 82.0 | 8.0 | 25.0 | WCMX 04 02 08 | M2,5×6 | T8 |
| WC22.5-03D-C25 | 22.5 | 145.0 | 89.0 | 83.5 | 38.5 | 25.0 | WCMX 04 02 08 | M2,5×6 | T8 |
| WC23-03D-C25 | 23.0 | 146.5 | 90.0 | 85.0 | 69.0 | 25.0 | WCMX 04 02 08 | M2,5×6 | T8 |
| WC23.5-03D-C25 | 23.5 | 148.0 | 92.0 | 86.5 | 70.5 | 25.0 | WCMX 04 02 08 | M2,5×6 | T8 |
| WC24-03D-C25 | 24.0 | 149.5 | 94.0 | 88.0 | 72.0 | 25.0 | WCMX 04 02 08 | M2,5×6 | T8 |
| WC24.5-03D-C25 | 24.5 | 151.0 | 95.0 | 89.5 | 25.0 | 25.0 | WCMX 04 02 08 | M2,5×6 | T8 |
| WC25-03D-C25 | 25.0 | 155.5 | 98.0 | 91.8 | 75.0 | 25.0 | WCMX 04 02 08 | M2,5×6 | T8 |
| WC25.5-03D-C32 | 25.5 | 160.0 | 100.0 | 94.0 | 76.5 | 32.0 | WCMT 08T308 | M3,5×8 | T15 |
| WC26-03D-C32 | 26.0 | 162.5 | 102.0 | 96.5 | 78.0 | 32.0 | WCMT 08T308 | M3,5×8 | T15 |
| WC26.5-03D-C32 | 26.5 | 165.0 | 105.0 | 99.0 | 79.5 | 32.0 | WCMT 08T308 | M3,5×8 | T15 |
| WC27-03D-C32 | 27.0 | 166.5 | 106.0 | 100.5 | 81.0 | 32.0 | WCMT 08T308 | M3,5×8 | T15 |
| WC27.5-03D-C32 | 27.5 | 168.0 | 108.0 | 102.0 | 8.0 | 32.0 | WCMT 08T308 | M3,5×8 | T15 |
| WC28-03D-C32 | 28.0 | 168.5 | 108.0 | 102.5 | 84.0 | 32.0 | WCMT 08T308 | M3,5×8 | T15 |
| WC28.5-03D-C32 | 28.5 | 169.0 | 109.0 | 103.0 | 85.5 | 32.0 | WCMT 08T308 | M3,5×8 | T15 |
| WC29-03D-C32 | 29.0 | 170.5 | 110.0 | 104.5 | 87.0 | 32.0 | WCMT 08T308 | M3,5×8 | T15 |
| WC29.5-03D-C32 | 29.5 | 172.0 | 112.0 | 106.0 | 88.5 | 32.0 | WCMT 08T308 | M3,5×8 | T15 |
| WC30-03D-C32 | 30.0 | 173.0 | 113.0 | 107.0 | 90.0 | 32.0 | WCMT 08T308 | M3,5×8 | T15 |
| WC30.5-03D-C32 | 30.5 | 174.0 | 114.0 | 108.0 | 91.5 | 32.0 | WCMT 08T308 | M3,5×8 | T15 |
| WC31-03D-C32 | 31.0 | 175.0 | 115.0 | 109.0 | 93.0 | 32.0 | WCMT 08T308 | M3,5×8 | T15 |
| WC31.5-03D-C32 | 31.5 | 176.0 | 116.0 | 110.0 | 94.5 | 32.0 | WCMT 08T308 | M3,5×8 | T15 |
| WC32-03D-C32 | 32.0 | 177.5 | 118.0 | 111.5 | 8.0 | 32.0 | WCMT 08T308 | M3,5×8 | T15 |
| WC32.5-03D-C32 | 32.5 | 179.0 | 119.0 | 113.0 | 97.5 | 32.0 | WCMT 08T308 | M3,5×8 | T15 |
| WC33-03D-C32 | 33.0 | 182.0 | 122.0 | 116.0 | 99.0 | 32.0 | WCMT 08T308 | M3,5×8 | T15 |
| WC33.5-03D-C32 | 33.5 | 182.0 | 122.0 | 116.0 | 100.5 | 32.0 | WCMT 08T308 | M3,5×8 | T15 |
| WC34-03D-C32 | 34.0 | 185.0 | 125.0 | 119.0 | 102.0 | 32.0 | WCMT 08T308 | M3,5×8 | T15 |
| WC35-03D-C32 | 35.0 | 188.0 | 128.0 | 122.0 | 105.0 | 32.0 | WCMT 08T308 | M3,5×8 | T15 |
| WC35.5-03D-C32 | 35.5 | 188.0 | 128.0 | 122.0 | 106.5 | 32.0 | WCMT 08T308 | M3,5×8 | T15 |
| WC36-03D-C32 | 36.0 | 101.0 | 131.0 | 125.0 | 108.0 | 32.0 | WCMT 08T308 | M3,5×8 | T15 |
| WC36.5-03D-C32 | 36.5 | 191.0 | 131.0 | 125.0 | 109.5 | 32.0 | WCMT 08T308 | M3,5×8 | T15 |
| WC37-03D-C32 | 37.0 | 196.0 | 136.0 | 130.0 | 111.0 | 32.0 | WCMT 08T308 | M3,5×8 | T15 |
| WC37.5-03D-C32 | 37.5 | 196.0 | 136.0 | 130.0 | 112.5 | 32.0 | WCMT 08T308 | M3,5×8 | T15 |
| WC38-03D-C32 | 38.0 | 199.0 | 139.0 | 133.0 | 114.0 | 32.0 | WCMT 08T308 | M3,5×8 | T15 |
| WC38.5-03D-C32 | 38.5 | 199.0 | 139.0 | 193.0 | 116.5 | 32.0 | WCMT 08T308 | M3,5×8 | T15 |
| WC39-03D-C32 | 39.0 | 200.0 | 140.0 | 134.0 | 117.0 | 32.0 | WCMT 08T308 | M3,5×8 | T15 |
| WC39.5-03D-C32 | 39.5 | 200.0 | 140.0 | 134.0 | 118.5 | 32.0 | WCMT 08T308 | M3,5×8 | T15 |
| WC40-03D-C32 | 40.0 | 203.0 | 143.0 | 137.0 | 120.0 | 32.0 | WCMT 08T308 | M3,5×8 | T15 |
| WC41-03D-C32 | 41.0 | 206.0 | 146.0 | 140.0 | 123.0 | 32.0 | WCMT 08T308 | M3,5×8 | T15 |
| WC42-03D-C40 | 42.0 | 224.0 | 154.0 | 148.0 | 126.0 | 40.0 | WCMT 080412 | M4,0x10 | T15 |
| WC43-03D-C40 | 43.0 | 227.0 | 157.0 | 151.0 | 129.0 | 40.0 | WCMT 080412 | M4,0x10 | T15 |
| WC44-03D-C40 | 44.0 | 230.0 | 160.0 | 154.0 | 132.0 | 40.0 | WCMT 080412 | M4,0x10 | T15 |
| WC45-03D-C40 | 45.0 | 233.0 | 163.0 | 157.0 | 135.0 | 40.0 | WCMT 080412 | M4,0x10 | T15 |
| WC46-03D-C40 | 46.0 | 236.0 | 166.0 | 160.0 | 138.0 | 40.0 | WCMT 080412 | M4,0x10 | T15 |
| WC47-03D-C40 | 47.0 | 239.0 | 169.0 | 163.0 | 141.0 | 40.0 | WCMT 080412 | M4,0x10 | T15 |
| WC48-03D-C40 | 48.0 | 242.0 | 172.0 | 166.0 | 144.0 | 40.0 | WCMT 080412 | M4,0x10 | T15 |
| WC49-03D-C40 | 49.0 | 245.0 | 175.0 | 169.0 | 147.0 | 40.0 | WCMT 080412 | M4,0x10 | T15 |
| WC50-03D-C40 | 50.0 | 248.0 | 178.0 | 172.0 | 150.0 | 40.0 | WCMT 080412 | M4,0x10 | T15 |
| WC51-03D-C40 | 51.0 | 251.0 | 181.0 | 175.0 | 153.0 | 40.0 | WCMT 080412 | M4,0x10 | T15 |
| WC52-03D-C40 | 52.0 | 254.0 | 184.0 | 178.0 | 156.0 | 40.0 | WCMT 080412 | M4,0x10 | T15 |
| WC53-03D-C40 | 53.0 | 257.0 | 187.0 | 181.0 | 159.0 | 40.0 | WCMT 080412 | M4,0x10 | T15 |
| WC54-03D-C40 | 54.0 | 260.0 | 190.0 | 184.0 | 162.0 | 40.0 | WCMT 080412 | M4,0x10 | T15 |
| WC55-03D-C40 | 55.0 | 263.0 | 193.0 | 187.0 | 165.0 | 40.0 | WCMT 080412 | M4,0x10 | T15 |
| WC56-03D-C40 | 56.0 | 266.0 | 196.0 | 190.0 | 168.0 | 40.0 | WCMT 080412 | M4,0x10 | T15 |
| WC57-03D-C40 | 57.0 | 269.0 | 199.0 | 193.0 | 171.0 | 40.0 | WCMT 080412 | M4,0x10 | T15 |
| WC58-03D-C40 | 58.0 | 272.0 | 202.0 | 196.0 | 174.0 | 40.0 | WCMT 080412 | M4,0x10 | T15 |
| WC59-03D-C40 | 59.0 | 275.0 | 205.0 | 199.0 | 177.0 | 40.0 | WCMT 080412 | M4,0x10 | T15 |
| WC60-03D-C40 | 60.0 | 260.0 | 210.0 | 204.0 | 180.0 | 40.0 | WCMT 080412 | M4,0x10 | T15 |
| WC61-03D-C40 | 61.0 | 283.0 | 213.0 | 207.0 | 183.0 | 40.0 | WCMT 06T308 | M3,5×8 | T15 |
| WC62-03D-C40 | 62.0 | 286.0 | 216.0 | 210.0 | 186.0 | 40.0 | WCMT 06T308 | M3,5×8 | T15 |
| WC63-03D-C40 | 63.0 | 289.0 | 219.0 | 213.0 | 189.0 | 40.0 | WCMT 06T308 | M3,5×8 | T15 |
| WC64-03D-C40 | 64.0 | 292.0 | 222.0 | 216.0 | 192.0 | 40.0 | WCMT 06T308 | M3,5×8 | T15 |
| WC65-03D-C40 | 65.0 | 295.0 | 225.0 | 219.0 | 195.0 | 40.0 | WCMT 06T308 | M3,5×8 | T15 |
| WC66-03D-C40 | 66.0 | 298.0 | 228.0 | 222.0 | 198.0 | 40.0 | WCMT 06T308 | M3,5×8 | T15 |
| WC67-03D-C40 | 67.0 | 301.0 | 231.0 | 225.0 | 201.0 | 40.0 | WCMT 06T308 | M3,5×8 | T15 |
| WC68-03D-C40 | 68.0 | 304.0 | 234.0 | 228.0 | 204.0 | 40.0 | WCMT 06T308 | M3,5×8 | T15 |
| WC69-03D-C40 | 69.0 | 307.0 | 237.0 | 231.0 | 207.0 | 40.0 | WCMT 06T308 | M3,5×8 | T15 |
| WC70-03D-C40 | 70.0 | 310.0 | 240.0 | 234.0 | 210.0 | 40.0 | WCMT 06T308 | M3,5×8 | T15 |
| WC71-03D-C40 | 71.0 | 323.0 | 253.0 | 247.0 | 213.0 | 40.0 | WCMT 06T308 | M3,5×8 | T15 |
| WC72-03D-C40 | 72.0 | 323.0 | 256.0 | 221.0 | 216.0 | 40.0 | WCMT 06T308 | M3,5×8 | T15 |
| WC73-03D-C40 | 73.0 | 329.0 | 259.0 | 224.0 | 219.0 | 40.0 | WCMT 06T308 | M3,5×8 | T15 |
| WC74-03D-C40 | 74.0 | 332.0 | 262.0 | 227.0 | 222.0 | 40.0 | WCMT 06T308 | M3,5×8 | T15 |
| WC75-03D-C40 | 75.0 | 335.0 | 265.0 | 230.0 | 225.0 | 40.0 | WCMT 06T308 | M3,5×8 | T15 |
| WC76-03D-C40 | 76.0 | 338.0 | 268.0 | 233.0 | 228.0 | 40.0 | WCMT 06T308 | M3,5×8 | T15 |
| WC77-03D-C40 | 77.0 | 341.0 | 271.0 | 236.0 | 231.0 | 40.0 | WCMT 06T308 | M3,5×8 | T15 |
| WC78-03D-C40 | 78.0 | 344.0 | 274.0 | 239.0 | 234.0 | 40.0 | WCMT 06T308 | M3,5×8 | T15 |
| WC79-03D-C40 | 79.0 | 347.0 | 277.0 | 242.0 | 237.0 | 40.0 | WCMT 06T308 | M3,5×8 | T15 |
| WC80-03D-C40 | 80.0 | 350.0 | 280.0 | 245.0 | 240.0 | 40.0 | WCMT 06T308 | M3,5×8 | T15 |
| WC81-03D-C40 | 81.0 | 353.0 | 283.0 | 248.0 | 243.0 | 40.0 | WCMT 06T308 | M3,5×8 | T15 |
| WC82-03D-C40 | 82.0 | 356.0 | 286.0 | 251.0 | 246.0 | 40.0 | WCMT 06T308 | M3,5×8 | T15 |
| WC83-03D-C40 | 83.0 | 359.0 | 289.0 | 254.0 | 249.0 | 40.0 | WCMT 06T308 | M3,5×8 | T15 |
| WC84-03D-C40 | 84.0 | 362.0 | 292.0 | 257.0 | 252.0 | 40.0 | WCMT 080412 | M4,0x10 | T15 |
| WC85-03D-C40 | 85.0 | 365.0 | 295.0 | 260.0 | 255.0 | 40.0 | WCMT 080412 | M4,0x10 | T15 |
WC_Serisi_04D
| Cat.No | D | L | L1 | L2 | L3 | d | Insert | Screw | Wrench |
| WC14-04D-C25 | 14.0 | 134.0 | 78.0 | 72.0 | 56.0 | 25.0 | WCMT 03 02 08 | M2.5X5 | T8 |
| WC14.5-04D-C25 | 14.5 | 136.0 | 80.0 | 74.0 | 58.0 | 25.0 | WCMT 03 02 08 | M2.5X5 | T8 |
| WC15-04D-C25 | 15.0 | 138.0 | 82.0 | 76.0 | 60.0 | 25.0 | WCMT 03 02 08 | M2.5X5 | T8 |
| WC15.5-04D-C25 | 15.5 | 138.0 | 82.0 | 76.0 | 62.0 | 25.0 | WCMT 03 02 08 | M2.5X5 | T8 |
| WC16-04D-C25 | 16.0 | 143.0 | 87.0 | 82.0 | 64.0 | 25.0 | WCMT 03 02 08 | M2.5X5 | T8 |
| WC16.5-04D-C25 | 16.5 | 143.0 | 87.0 | 82.0 | 66.0 | 25.0 | WCMT 03 02 08 | M2.5X5 | T8 |
| WC17-04D-C25 | 17.0 | 147.0 | 91.0 | 86.0 | 68.0 | 25.0 | WCMT 03 02 08 | M2.5X5 | T8 |
| WC17.5-04D-C25 | 17.5 | 147.0 | 91.0 | 86.0 | 70.0 | 25.0 | WCMT 03 02 08 | M2.5X5 | T8 |
| WC18-04D-C25 | 18.0 | 151.0 | 95.0 | 90.0 | 72.0 | 25.0 | WCMT 03 02 08 | M2.5X5 | T8 |
| WC18.5-04D-C25 | 18.5 | 151.0 | 95.0 | 90.0 | 74.0 | 25.0 | WCMT 03 02 08 | M2.5X5 | T8 |
| WC19-04D-C25 | 19.0 | 154.0 | 98.0 | 92.0 | 76.0 | 25.0 | WCMT 03 02 08 | M2.5X5 | T8 |
| WC19.5-04D-C25 | 19.5 | 154.0 | 98.0 | 92.0 | 78.0 | 25.0 | WCMT 03 02 08 | M2.5X5 | T8 |
| WC20-04D-C25 | 20.0 | 159.0 | 103.0 | 98.0 | 80.0 | 25.0 | WCMT 04 02 08 | M2.5X6 | T8 |
| WC20.5-04D-C25 | 20.5 | 159.0 | 103.0 | 98.0 | 82.0 | 25.0 | WCMT 04 02 08 | M2.5X6 | T8 |
| WC21-04D-C25 | 21.0 | 163.0 | 107.0 | 102.0 | 84.0 | 25.0 | WCMT 04 02 08 | M2.5X6 | T8 |
| WC21.5-04D-C25 | 21.5 | 163.0 | 107.0 | 102.0 | 86.0 | 25.0 | WCMT 04 02 08 | M2.5X6 | T8 |
| WC22-04D-C25 | 22.0 | 164.0 | 108.0 | 102.0 | 88.0 | 25.0 | WCMT 04 02 08 | M2.5X6 | T8 |
| WC22.5-04D-C25 | 22.5 | 164.0 | 108.0 | 102.0 | 90.0 | 25.0 | WCMT 04 02 08 | M2.5X6 | T8 |
| WC23-04D-C25 | 23.0 | 171.0 | 115.0 | 110.0 | 92.0 | 25.0 | WCMT 04 02 08 | M2.5X6 | T8 |
| WC23.5-04D-C25 | 23.5 | 171.0 | 115.0 | 110.0 | 94.0 | 25.0 | WCMT 04 02 08 | M2.5X6 | T8 |
| WC24-04D-C32 | 24.0 | 175.0 | 119.0 | 114.0 | 96.0 | 32.0 | WCMT 05 03 08 | M3.0X7 | T10 |
| WC24.5-04D-C32 | 24.5 | 175.0 | 119.0 | 114.0 | 98.0 | 32.0 | WCMT 05 03 08 | M3.0X7 | T10 |
| WC25-04D-C32 | 25.0 | 185.0 | 125.0 | 119.0 | 100.0 | 32.0 | WCMT 05 03 08 | M3.0X7 | T10 |
| WC25.5-04D-C32 | 25.5 | 185.0 | 125.0 | 119.0 | 102.0 | 32.0 | WCMT 05 03 08 | M3.0X7 | T10 |
| WC26-04D-C32 | 26.0 | 191.0 | 131.0 | 125.0 | 104.0 | 32.0 | WCMT 05 03 08 | M3.0X7 | T10 |
| WC26.5-04D-C32 | 26.5 | 191.0 | 131.0 | 125.0 | 106.0 | 32.0 | WCMT 05 03 08 | M3.0X7 | T10 |
| WC27-04D-C32 | 27.0 | 195.0 | 135.0 | 129.0 | 108.0 | 32.0 | WCMT 05 03 08 | M3.0X7 | T10 |
| WC27.5-04D-C32 | 27.5 | 195.0 | 135.0 | 129.0 | 110.0 | 32.0 | WCMT 05 03 08 | M3.0X7 | T10 |
| WC28-04D-C32 | 28.0 | 197.0 | 137.0 | 131.0 | 112.0 | 32.0 | WCMT 05 03 08 | M3.0X7 | T10 |
| WC28.5-04D-C32 | 28.5 | 197.0 | 137.0 | 131.0 | 114.0 | 32.0 | WCMT 05 03 08 | M3.0X7 | T10 |
| WC29-04D-C32 | 29.0 | 201.0 | 141.0 | 135.0 | 116.0 | 32.0 | WCMT 05 03 08 | M3.0X7 | T10 |
| WC29.5-04D-C32 | 29.5 | 201.0 | 141.0 | 135.0 | 118.0 | 32.0 | WCMT 05 03 08 | M3.0X7 | T10 |
| WC30-04D-C32 | 30.0 | 205.0 | 145.0 | 139.0 | 120.0 | 32.0 | WCMT 05 03 08 | M3.0X7 | T10 |
| WC30.5-04D-C32 | 30.5 | 205.0 | 145.0 | 139.0 | 122.0 | 32.0 | WCMT 05 03 08 | M3.0X7 | T10 |
| WC31-04D-C32 | 31.0 | 207.0 | 147.0 | 141.0 | 124.0 | 32.0 | WCMT 06 T3 08 | M3.5X8 | T15 |
| WC31.5-04D-C32 | 31.5 | 207.0 | 147.0 | 141.0 | 126.0 | 32.0 | WCMT 06 T3 08 | M3.5X8 | T15 |
| WC32-04D-C32 | 32.0 | 211.0 | 151.0 | 145.0 | 128.0 | 32.0 | WCMT 06 T3 08 | M3.5X8 | T15 |
| WC32.5-04D-C32 | 32.5 | 211.0 | 151.0 | 145.0 | 130.0 | 32.0 | WCMT 06 T3 08 | M3.5X8 | T15 |
| WC33-04D-C32 | 33.0 | 215.0 | 155.0 | 149.0 | 132.0 | 32.0 | WCMT 06 T3 08 | M3.5×8 | T15 |
| WC33.5-04D-C32 | 33.5 | 217.0 | 157.0 | 151.0 | 134.0 | 32.0 | WCMT 06 T3 08 | M3.5×8 | T15 |
| WC34-04D-C32 | 34.0 | 219.0 | 159.0 | 153.0 | 136.0 | 32.0 | WCMT 06 T3 08 | M3.5×8 | T15 |
| WC34.5-04D-C32 | 34.5 | 221.0 | 161.0 | 155.0 | 138.0 | 32.0 | WCMT 06 T3 08 | M3.5×8 | T15 |
| WC35-04D-C32 | 35.0 | 223.0 | 163.0 | 157.0 | 140.0 | 32.0 | WCMT 06 T3 08 | M3.5×8 | T15 |
| WC35.5-04D-C32 | 35.5 | 225.0 | 165.0 | 159.0 | 142.0 | 32.0 | WCMT 06 T3 08 | M3.5×8 | T15 |
| WC36-04D-C32 | 36.0 | 227.0 | 167.0 | 161.0 | 144.0 | 32.0 | WCMT 06 T3 08 | M3.5×8 | T15 |
| WC36.5-04D-C32 | 36.5 | 229.0 | 169.0 | 163.0 | 146.0 | 32.0 | WCMT 06 T3 08 | M3.5×8 | T15 |
| WC37-04D-C32 | 37.0 | 231.0 | 171.0 | 165.0 | 148.0 | 32.0 | WCMT 06 T3 08 | M3.5×8 | T15 |
| WC37.5-04D-C32 | 37.5 | 233.0 | 173.0 | 167.0 | 150.0 | 32.0 | WCMT 06 T3 08 | M3.5×8 | T15 |
| WC38-04D-C32 | 38.0 | 235.0 | 175.0 | 169.0 | 152.0 | 32.0 | WCMT 06 T3 08 | M3.5×8 | T15 |
| WC38.5-04D-C32 | 38.5 | 237.0 | 177.0 | 171.0 | 154.0 | 32.0 | WCMT 06 T3 08 | M3.5×8 | T15 |
| WC39-04D-C32 | 39.0 | 239.0 | 179.0 | 173.0 | 156.0 | 32.0 | WCMT 06 T3 08 | M3.5×8 | T15 |
| WC39.5-04D-C32 | 39.5 | 241.0 | 181.0 | 175.0 | 158.0 | 32.0 | WCMT 06 T3 08 | M3.5×8 | T15 |
| WC40-04D-C32 | 40.0 | 243.0 | 183.0 | 177.0 | 160.0 | 32.0 | WCMT 06 T3 08 | M3.5×8 | T15 |
| WC40.5-04D-C32 | 40.5 | 245.0 | 185.0 | 179.0 | 162.0 | 32.0 | WCMT 06 T3 08 | M3.5×8 | T15 |
| WC41-04D-C32 | 41.0 | 247.0 | 187.0 | 181.0 | 164.0 | 32.0 | WCMT 06 T3 08 | M3.5×8 | T15 |
| WC42-04D-C40 | 42.0 | 266.0 | 196.0 | 190.0 | 168.0 | 40.0 | WCMT 08 04 12 | M4.0x10 | T15 |
| WC43-04D-C40 | 43.0 | 270.0 | 200.0 | 194.0 | 172.0 | 40.0 | WCMT 08 04 12 | M4.0x10 | T15 |
| WC44-04D-C40 | 44.0 | 274.0 | 204.0 | 198.0 | 176.0 | 40.0 | WCMT 08 04 12 | M4.0x10 | T15 |
| WC45-04D-C40 | 45.0 | 278.0 | 208.0 | 202.0 | 180.0 | 40.0 | WCMT 08 04 12 | M4.0x10 | T15 |
| WC46-04D-C40 | 46.0 | 282.0 | 212.0 | 206.0 | 184.0 | 40.0 | WCMT 08 04 12 | M4.0x10 | T15 |
| WC47-04D-C40 | 47.0 | 286.0 | 216.0 | 210.0 | 188.0 | 40.0 | WCMT 08 04 12 | M4.0x10 | T15 |
| WC48-04D-C40 | 48.0 | 290.0 | 220.0 | 214.0 | 192.0 | 40.0 | WCMT 08 04 12 | M4.0x10 | T15 |
| WC49-04D-C40 | 49.0 | 294.0 | 224.0 | 218.0 | 196.0 | 40.0 | WCMT 08 04 12 | M4.0x10 | T15 |
| WC50-04D-C40 | 50.0 | 298.0 | 228.0 | 222.0 | 200.0 | 40.0 | WCMT 08 04 12 | M4.0x10 | T15 |
| WC51-04D-C40 | 51.0 | 302.0 | 232.0 | 226.0 | 204.0 | 40.0 | WCMT 08 04 12 | M4.0x10 | T15 |
| WC52-04D-C40 | 52.0 | 306.0 | 236.0 | 230.0 | 208.0 | 40.0 | WCMT 08 04 12 | M4.0x10 | T15 |
| WC53-04D-C40 | 53.0 | 310.0 | 240.0 | 234.0 | 212.0 | 40.0 | WCMT 08 04 12 | M4.0x10 | T15 |
| WC54-04D-C40 | 54.0 | 314.0 | 244.0 | 238.0 | 216.0 | 40.0 | WCMT 08 04 12 | M4.0x10 | T15 |
| WC55-04D-C40 | 55.0 | 318.0 | 248.0 | 242.0 | 220.0 | 40.0 | WCMT 08 04 12 | M4.0x10 | T15 |
| WC56-04D-C40 | 56.0 | 322.0 | 252.0 | 246.0 | 224.0 | 40.0 | WCMT 08 04 12 | M4.0x10 | T15 |
| WC57-04D-C40 | 57.0 | 326.0 | 256.0 | 250.0 | 228.0 | 40.0 | WCMT 08 04 12 | M4.0x10 | T15 |
| WC58-04D-C40 | 58.0 | 330.0 | 260.0 | 254.0 | 232.0 | 40.0 | WCMT 08 04 12 | M4.0x10 | T15 |
| WC59-04D-C40 | 59.0 | 334.0 | 264.0 | 258.0 | 236.0 | 40.0 | WCMT 08 04 12 | M4.0x10 | T15 |
| WC60-04D-C40 | 60.0 | 338.0 | 268.0 | 262.0 | 240.0 | 40.0 | WCMT 08 04 12 | M4.0x10 | T15 |
| WC61-04D-C40 | 61.0 | 344.0 | 274.0 | 268.0 | 244.0 | 40.0 | WCMT 06 T3 08 | M3.5×8 | T15 |
| WC62-04D-C40 | 62.0 | 348.0 | 278.0 | 272.0 | 248.0 | 40.0 | WCMT 06 T3 08 | M3.5×8 | T15 |
| WC63-04D-C40 | 63.0 | 352.0 | 282.0 | 276.0 | 252.0 | 40.0 | WCMT 06 T3 08 | M3.5×8 | T15 |
| WC64-04D-C40 | 64.0 | 356.0 | 286.0 | 280.0 | 256.0 | 40.0 | WCMT 06 T3 08 | M3.5×8 | T15 |
| WC65-04D-C40 | 65.0 | 360.0 | 290.0 | 284.0 | 260.0 | 40.0 | WCMT 06 T3 08 | M3.5×8 | T15 |
| WC66-04D-C40 | 66.0 | 364.0 | 294.0 | 288.0 | 264.0 | 40.0 | WCMT 06 T3 08 | M3.5×8 | T15 |
| WC67-04D-C40 | 67.0 | 368.0 | 298.0 | 292.0 | 268.0 | 40.0 | WCMT 06 T3 08 | M3.5×8 | T15 |
| WC68-04D-C40 | 68.0 | 372.0 | 302.0 | 296.0 | 272.0 | 40.0 | WCMT 06 T3 08 | M3.5×8 | T15 |
| WC69-04D-C40 | 69.0 | 376.0 | 306.0 | 300.0 | 276.0 | 40.0 | WCMT 06 T3 08 | M3.5×8 | T15 |
| WC70-04D-C40 | 70.0 | 380.0 | 310.0 | 304.0 | 280.0 | 40.0 | WCMT 06 T3 08 | M3.5×8 | T15 |
| WC71-04D-C40 | 71.0 | 384.0 | 314.0 | 308.0 | 284.0 | 40.0 | WCMT 06 T3 08 | M3.5×8 | T15 |
| WC72-04D-C40 | 72.0 | 388.0 | 318.0 | 312.0 | 288.0 | 40.0 | WCMT 06 T3 08 | M3.5×8 | T15 |
| WC73-04D-C40 | 73.0 | 392.0 | 322.0 | 316.0 | 292.0 | 40.0 | WCMT 06 T3 08 | M3.5×8 | T15 |
| WC74-04D-C40 | 74.0 | 396.0 | 326.0 | 320.0 | 296.0 | 40.0 | WCMT 06 T3 08 | M3.5×8 | T15 |
| WC75-04D-C40 | 75.0 | 400.0 | 330.0 | 324.0 | 300.0 | 40.0 | WCMT 06 T3 08 | M3.5×8 | T15 |
WC_Serisi_05D
| Cat.No | D | L | L1 | L2 | L3 | d | Insert | Screw | Wrench |
| WC15-05D-C25 | 15.0 | 153.0 | 97.0 | 91.5 | 75.0 | 25.0 | WCMT 03 02 08 | M2.5X6 | T8 |
| WC16-05D-C25 | 16.0 | 159.0 | 103.0 | 97.5 | 80.0 | 25.0 | WCMT 03 02 08 | M2.5X6 | T8 |
| WC17-05D-C25 | 17.0 | 164.0 | 108.0 | 102.5 | 85.0 | 25.0 | WCMT 03 02 08 | M2.5X6 | T8 |
| WC18-05D-C25 | 18.0 | 169.0 | 113.0 | 107.5 | 90.0 | 25.0 | WCMT 03 02 08 | M2.5X6 | T8 |
| WC19-05D-C25 | 19.0 | 173.0 | 117.0 | 111.5 | 95.0 | 25.0 | WCMT 03 02 08 | M2.5X6 | T8 |
| WC20-05D-C32 | 20.0 | 179.0 | 123.0 | 117.5 | 100.0 | 32.0 | WCMT 04 02 08 | M2.5X6 | T8 |
| WC21-05D-C32 | 21.0 | 184.0 | 128.0 | 122.5 | 105.0 | 32.0 | WCMT 04 02 08 | M2.5X6 | T8 |
| WC22-05D-C32 | 22.0 | 186.0 | 130.0 | 124.5 | 110.0 | 32.0 | WCMT 04 02 08 | M2.5X6 | T8 |
| WC23-05D-C32 | 23.0 | 194.0 | 138.0 | 132.5 | 115.0 | 32.0 | WCMT 04 02 08 | M2.5X6 | T8 |
| WC24-05D-C32 | 24.0 | 199.0 | 143.0 | 137.5 | 120.0 | 32.0 | WCMT 05 03 08 | M3.0X7 | T10 |
| WC25-05D-C32 | 25.0 | 210.0 | 150.0 | 144.0 | 125.0 | 32.0 | WCMT 05 03 08 | M3.0X7 | T10 |
| WC26-05D-C32 | 26.0 | 217.0 | 157.0 | 151.0 | 130.0 | 32.0 | WCMT 05 03 08 | M3.0X7 | T10 |
| WC27-05D-C32 | 27.0 | 222.0 | 162.0 | 156.0 | 135.0 | 32.0 | WCMT 05 03 08 | M3.0X7 | T10 |
| WC28-05D-C32 | 28.0 | 225.0 | 165.0 | 159.0 | 140.0 | 32.0 | WCMT 05 03 08 | M3.0X7 | T10 |
| WC29-05D-C32 | 29.0 | 230.0 | 170.0 | 164.0 | 145.0 | 32.0 | WCMT 05 03 08 | M3.0X7 | T10 |
| WC30-05D-C32 | 30.0 | 235.0 | 175.0 | 169.0 | 150.0 | 32.0 | WCMT 05 03 08 | M3.0X7 | T10 |
| WC31-05D-C32 | 31.0 | 238.0 | 178.0 | 172.0 | 155.0 | 32.0 | WCMT 06 T3 08 | M3.5X8 | T15 |
| WC32-05D-C32 | 32.0 | 243.0 | 183.0 | 177.0 | 160.0 | 32.0 | WCMT 06 T3 08 | M3.5X8 | T15 |
| WC33-05D-C32 | 33.0 | 248.0 | 188.0 | 182.0 | 165.0 | 32.0 | WCMT 06 T3 08 | M3.5X8 | T15 |
| WC34-05D-C32 | 34.0 | 253.0 | 193.0 | 187.0 | 170.0 | 32.0 | WCMT 06 T3 08 | M3.5X8 | T15 |
| WC35-05D-C32 | 35.0 | 258.0 | 198.0 | 192.0 | 175.0 | 32.0 | WCMT 06 T3 08 | M3.5X8 | T15 |
| WC36-05D-C32 | 36.0 | 263.0 | 203.0 | 197.0 | 180.0 | 32.0 | WCMT 06 T3 08 | M3.5X8 | T15 |
| WC37-05D-C32 | 37.0 | 270.0 | 210.0 | 204.0 | 185.0 | 32.0 | WCMT 06 T3 08 | M3.5X8 | T15 |
| WC38-05D-C32 | 38.0 | 275.0 | 215.0 | 209.0 | 190.0 | 32.0 | WCMT 06 T3 08 | M3.5X8 | T15 |
| WC39-05D-C32 | 39.0 | 278.0 | 218.0 | 212.0 | 195.0 | 32.0 | WCMT 06 T3 08 | M3.5X8 | T15 |
| WC40-05D-C32 | 40.0 | 283.0 | 223.0 | 217.0 | 200.0 | 32.0 | WCMT 06 T3 08 | M3.5X8 | T15 |
| WC41-05D-C32 | 41.0 | 288.0 | 228.0 | 222.0 | 205.0 | 32.0 | WCMT 06 T3 08 | M3.5X8 | T15 |
| WC42-05D-C40 | 42.0 | 308.0 | 238.0 | 232.0 | 210.0 | 40.0 | WCMT 08 04 12 | M4.0X10 | T15 |
| WC43-05D-C40 | 43.0 | 313.0 | 243.0 | 237.0 | 215.0 | 40.0 | WCMT 08 04 12 | M4.0X10 | T15 |
| WC44-05D-C40 | 44.0 | 318.0 | 248.0 | 242.0 | 220.0 | 40.0 | WCMT 08 04 12 | M4.0X10 | T15 |
| WC45-05D-C40 | 45.0 | 323.0 | 253.0 | 247.0 | 225.0 | 40.0 | WCMT 08 04 12 | M4.0X10 | T15 |
| WC46-05D-C40 | 46.0 | 328.0 | 258.0 | 252.0 | 230.0 | 40.0 | WCMT 08 04 12 | M4.0X10 | T15 |
| WC47-05D-C40 | 47.0 | 333.0 | 263.0 | 257.0 | 235.0 | 40.0 | WCMT 08 04 12 | M4.0X10 | T15 |
| WC48-05D-C40 | 48.0 | 338.0 | 268.0 | 262.0 | 240.0 | 40.0 | WCMT 08 04 12 | M4.0X10 | T15 |
| WC49-05D-C40 | 49.0 | 343.0 | 273.0 | 267.0 | 245.0 | 40.0 | WCMT 08 04 12 | M4.0X10 | T15 |
| WC50-05D-C40 | 50.0 | 348.0 | 278.0 | 272.0 | 250.0 | 40.0 | WCMT 08 04 12 | M4.0X10 | T15 |
| WC51-05D-C40 | 51.0 | 353.0 | 283.0 | 277.0 | 255.0 | 40.0 | WCMT 08 04 12 | M4.0X10 | T15 |
| WC52-05D-C40 | 52.0 | 358.0 | 288.0 | 282.0 | 260.0 | 40.0 | WCMT 08 04 12 | M4.0X10 | T15 |
| WC53-05D-C40 | 53.0 | 363.0 | 293.0 | 287.0 | 265.0 | 40.0 | WCMT 08 04 12 | M4.0X10 | T15 |
| WC54-05D-C40 | 54.0 | 368.0 | 298.0 | 292.0 | 270.0 | 40.0 | WCMT 08 04 12 | M4.0X10 | T15 |
| WC55-05D-C40 | 55.0 | 373.0 | 303.0 | 297.0 | 275.0 | 40.0 | WCMT 08 04 12 | M4.0X10 | T15 |
| WC56-05D-C40 | 56.0 | 378.0 | 308.0 | 302.0 | 280.0 | 40.0 | WCMT 08 04 12 | M4.0X10 | T15 |
| WC57-05D-C40 | 57.0 | 383.0 | 313.0 | 307.0 | 285.0 | 40.0 | WCMT 08 04 12 | M4.0X10 | T15 |
| WC58-05D-C40 | 58.0 | 388.0 | 318.0 | 312.0 | 290.0 | 40.0 | WCMT 08 04 12 | M4.0X10 | T15 |
| WC59-05D-C40 | 59.0 | 393.0 | 323.0 | 317.0 | 295.0 | 40.0 | WCMT 08 04 12 | M4.0X10 | T15 |
| WC60-05D-C40 | 60.0 | 400.0 | 330.0 | 324.0 | 300.0 | 40.0 | WCMT 08 04 12 | M4.0X10 | T15 |
WC_Serisi_06D
| Cat.No | D | L | L1 | L2 | L3 | d | Insert | Screw | Wrench |
| WC22-6D-C25 | 22.0 | 208.0 | 152.0 | 146.5 | 132.0 | 32.0 | WCMT040208 | M2.5×6 | T8 |
| WC23-6D-C25 | 23.0 | 217.0 | 161.0 | 155.5 | 138.0 | 32.0 | WCMT040208 | M2.5×6 | T8 |
| WC24-6D-C25 | 24.0 | 223.0 | 167.0 | 161.5 | 144.0 | 32.0 | WCMT050308 | M3.0x7 | T10 |
| WC25-6D-C32 | 25.0 | 235.0 | 175.0 | 169.0 | 150.0 | 32.0 | WCMT050308 | M3.0x7 | T10 |
| WC26-6D-C32 | 26.0 | 243.0 | 183.0 | 177.0 | 156.0 | 32.0 | WCMT050308 | M3.0x7 | T10 |
| WC27-6D-C32 | 27.0 | 249.0 | 189.0 | 183.0 | 162.0 | 32.0 | WCMT050308 | M3.0x7 | T10 |
| WC28-6D-C32 | 28.0 | 253.0 | 193.0 | 187.0 | 168.0 | 32.0 | WCMT050308 | M3.0x7 | T10 |
| WC29-6D-C32 | 29.0 | 259.0 | 199.0 | 193.0 | 174.0 | 32.0 | WCMT050308 | M3.0x7 | T10 |
| WC30-6D-C32 | 30.0 | 265.0 | 205.0 | 199.0 | 180.0 | 32.0 | WCMT050308 | M3.0x7 | T10 |
| WC31-6D-C32 | 31.0 | 269.0 | 209.0 | 203.0 | 186.0 | 32.0 | WCMT06T308 | M3.5×8 | T15 |
| WC32-6D-C32 | 32.0 | 275.0 | 215.0 | 209.0 | 192.0 | 32.0 | WCMT06T308 | M3.5×8 | T15 |
| WC33-6D-C32 | 33.0 | 281.0 | 221.0 | 215.0 | 198.0 | 32.0 | WCMT06T308 | M3.5×8 | T15 |
| WC34-6D-C32 | 34.0 | 287.0 | 227.0 | 221.0 | 204.0 | 32.0 | WCMT06T308 | M3.5×8 | T15 |
| WC35-6D-C32 | 35.0 | 293.0 | 233.0 | 227.0 | 210.0 | 32.0 | WCMT06T308 | M3.5×8 | T15 |
| WC36-6D-C32 | 36.0 | 299.0 | 239.0 | 233.0 | 216.0 | 32.0 | WCMT06T308 | M3.5×8 | T15 |
| WC37-6D-C32 | 37.0 | 307.0 | 247.0 | 241.0 | 222.0 | 32.0 | WCMT06T308 | M3.5×8 | T15 |
| WC38-6D-C32 | 38.0 | 313.0 | 253.0 | 247.0 | 228.0 | 32.0 | WCMT06T308 | M3.5×8 | T15 |
| WC39-6D-C32 | 39.0 | 317.0 | 257.0 | 251.0 | 234.0 | 32.0 | WCMT06T308 | M3.5×8 | T15 |
| WC40-6D-C32 | 40.0 | 323.0 | 263.0 | 257.0 | 240.0 | 32.0 | WCMT06T308 | M3.5×8 | T15 |
| WC41-6D-C32 | 41.0 | 329.0 | 269.0 | 263.0 | 246.0 | 32.0 | WCMT06T308 | M3.5×8 | T15 |
| WC42-6D-C40 | 42.0 | 350.0 | 280.0 | 274.0 | 252.0 | 40.0 | WCMT080412 | M4.0x10 | T15 |
| WC43-6D-C40 | 43.0 | 356.0 | 286.0 | 280.0 | 258.0 | 40.0 | WCMT080412 | M4.0x10 | T15 |
| WC44-6D-C40 | 44.0 | 362.0 | 292.0 | 286.0 | 264.0 | 40.0 | WCMT080412 | M4.0x10 | T15 |
| WC45-6D-C40 | 45.0 | 368.0 | 298.0 | 292.0 | 270.0 | 40.0 | WCMT080412 | M4.0x10 | T15 |
| WC46-6D-C40 | 46.0 | 374.0 | 304.0 | 298.0 | 276.0 | 40.0 | WCMT080412 | M4.0x10 | T15 |
| WC47-6D-C40 | 47.0 | 380.0 | 310.0 | 304.0 | 282.0 | 40.0 | WCMT080412 | M4.0x10 | T15 |
| WC48-6D-C40 | 48.0 | 386.0 | 316.0 | 310.0 | 288.0 | 40.0 | WCMT080412 | M4.0x10 | T15 |
| WC49-6D-C40 | 49.0 | 392.0 | 322.0 | 316.0 | 294.0 | 40.0 | WCMT080412 | M4.0x10 | T15 |
| WC50-6D-C40 | 50.0 | 398.0 | 328.0 | 322.0 | 300.0 | 40.0 | WCMT080412 | M4.0x10 | T15 |
