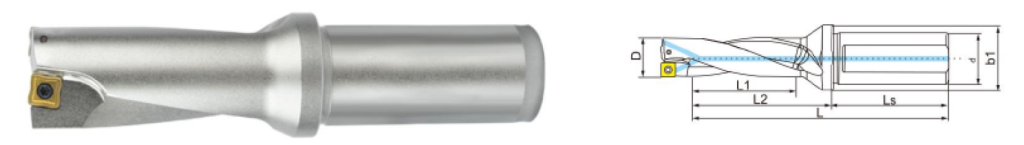

SO_Serisi_2D
| Cat.No | D | L | L1 | L2 | L3 | d | Insert | Screw | Wrench |
| SO12-2D-C20-04 | 12.0 | 94.0 | 50.0 | 44.0 | 24.0 | 20.0 | SOMT040204 | M1.8 | T6 |
| SO12.5-2D-C20-04 | 12.5 | 96.0 | 50.0 | 46.0 | 25.0 | 20.0 | SOMT040204 | M1.8 | T6 |
| SO13-2D-C20-04 | 13.0 | 96.0 | 50.0 | 46.0 | 26.0 | 20.0 | SOMT040204 | M1.8 | T6 |
| SO13.5-2D-C20-04 | 13.5 | 96.0 | 50.0 | 46.0 | 27.0 | 20.0 | SOMT040204 | M1.8 | T6 |
| SO14-2D-C20-05 | 14.0 | 96.0 | 50.0 | 46.0 | 28.0 | 20.0 | SOMT050204 | M2.0 | T6 |
| SO14.5-2D-C20-05 | 14.5 | 99.0 | 50.0 | 49.0 | 29.0 | 20.0 | SOMT050204 | M2.0 | T6 |
| SO15-2D-C20-05 | 15.0 | 99.0 | 50.0 | 49.0 | 30.0 | 20.0 | SOMT050204 | M2.0 | T6 |
| SO15.5-2D-C20-05 | 15.5 | 100.0 | 50.0 | 50.0 | 31.0 | 20.0 | SOMT050204 | M2.0 | T6 |
| SO16-2D-C20-05 | 16.0 | 100.0 | 50.0 | 50.0 | 32.0 | 20.0 | SOMT050204 | M2.0 | T6 |
| SO16.5-2D-C25-06 | 16.5 | 110.0 | 56.0 | 54.0 | 33.0 | 25.0 | SOMT060204 | M2.2 | T7 |
| SO17.0-2D-C25-06 | 17.0 | 110.0 | 56.0 | 54.0 | 34.0 | 25.0 | SOMT060204 | M2.2 | T7 |
| SO17.5-2D-C25-06 | 17.5 | 113.0 | 56.0 | 57.0 | 35.0 | 25.0 | SOMT060204 | M2.2 | T7 |
| SO18.0-2D-C25-06 | 18.0 | 113.0 | 56.0 | 57.0 | 36.0 | 25.0 | SOMT060204 | M2.2 | T7 |
| SO18.5-2D-C25-06 | 18.5 | 115.0 | 56.0 | 59.0 | 37.0 | 25.0 | SOMT060204 | M2.2 | T7 |
| SO19.0-2D-C25-06 | 19.0 | 115.0 | 56.0 | 59.0 | 38.0 | 25.0 | SOMT060204 | M2.2 | T7 |
| SO19.5-2D-C25-07 | 19.5 | 119.0 | 56.0 | 63.0 | 39.0 | 25.0 | SOMT070306 | M2.2 | T7 |
| SO20.0-2D-C25-07 | 20.0 | 119.0 | 56.0 | 63.0 | 40.0 | 25.0 | SOMT070306 | M2.2 | T7 |
| SO20.5-2D-C25-07 | 20.5 | 121.0 | 56.0 | 65.0 | 41.0 | 25.0 | SOMT070306 | M2.2 | T7 |
| SO21.0-2D-C25-07 | 21.0 | 121.0 | 56.0 | 65.0 | 42.0 | 25.0 | SOMT070306 | M2.2 | T7 |
| SO21.5-2D-C25-07 | 21.5 | 123.0 | 56.0 | 67.0 | 43.0 | 25.0 | SOMT070306 | M2.2 | T7 |
| SO22.0-2D-C25-07 | 22.0 | 123.0 | 56.0 | 67.0 | 44.0 | 25.0 | SOMT070306 | M2.2 | T7 |
| SO22.5-2D-C25-08 | 22.5 | 124.0 | 56.0 | 68.0 | 45.0 | 25.0 | SOMT08T306 | M2.5 | T7 |
| SO23.0-2D-C25-08 | 23.0 | 124.0 | 56.0 | 68.0 | 46.0 | 25.0 | SOMT08T306 | M2.5 | T7 |
| SO23.5-2D-C25-08 | 23.5 | 126.0 | 56.0 | 70.0 | 47.0 | 25.0 | SOMT08T306 | M2.5 | T7 |
| SO24.0-2D-C25-08 | 24.0 | 126.0 | 56.0 | 70.0 | 48.0 | 25.0 | SOMT08T306 | M2.5 | T7 |
| SO24.5-2D-C25-08 | 24.5 | 128.0 | 56.0 | 72.0 | 49.0 | 25.0 | SOMT08T306 | M2.5 | T7 |
| SO25.0-2D-C32-08 | 25.0 | 128.0 | 56.0 | 72.0 | 50.0 | 32.0 | SOMT08T306 | M2.5 | T7 |
| SO25.5-2D-C32-08 | 25.5 | 133.0 | 60.0 | 73.0 | 51.0 | 32.0 | SOMT08T306 | M2.5 | T7 |
| SO26.0-2D-C32-08 | 26.0 | 133.0 | 60.0 | 73.0 | 52.0 | 32.0 | SOMT08T306 | M2.5 | T7 |
| SO26.5-2D-C32-09 | 26.5 | 137.0 | 60.0 | 77.0 | 53.0 | 32.0 | SOMT09T308 | M3.5 | T10 |
| SO27.0-2D-C32-09 | 27.0 | 137.0 | 60.0 | 77.0 | 54.0 | 32.0 | SOMT09T308 | M3.5 | T10 |
| SO27.5-2D-C32-09 | 27.5 | 139.0 | 60.0 | 79.0 | 55.0 | 32.0 | SOMT09T308 | M3.5 | T10 |
| SO28.0-2D-C32-09 | 28.0 | 139.0 | 60.0 | 79.0 | 56.0 | 32.0 | SOMT09T308 | M3.5 | T10 |
| SO28.5-2D-C32-09 | 28.5 | 141.0 | 60.0 | 81.0 | 57.0 | 32.0 | SOMT09T308 | M3.5 | T10 |
| SO29.0-2D-C32-09 | 29.0 | 141.0 | 60.0 | 81.0 | 58.0 | 32.0 | SOMT09T308 | M3.5 | T10 |
| SO29.5-2D-C32-09 | 29.5 | 143.0 | 60.0 | 83.0 | 59.0 | 32.0 | SOMT09T308 | M3.5 | T10 |
| SO30.0-2D-C32-09 | 30.0 | 143.0 | 60.0 | 83.0 | 60.0 | 32.0 | SOMT09T308 | M3.5 | T10 |
| SO30.5-2D-C32-09 | 30.5 | 145.0 | 60.0 | 85.0 | 61.0 | 32.0 | SOMT09T308 | M3.5 | T10 |
| SO31.0-2D-C32-09 | 31.0 | 145.0 | 60.0 | 85.0 | 62.0 | 32.0 | SOMT09T308 | M3.5 | T10 |
| SO32.0-2D-C32-11 | 32.0 | 147.0 | 60.0 | 87.0 | 64.0 | 32.0 | SOMT11T308 | M3.5 | T10 |
| SO33.0-2D-C32-11 | 33.0 | 149.0 | 60.0 | 89.0 | 66.0 | 32.0 | SOMT11T308 | M3.5 | T10 |
| SO34.0-2D-C32-11 | 34.0 | 151.0 | 60.0 | 91.0 | 68.0 | 32.0 | SOMT11T308 | M3.5 | T10 |
| SO35.0-2D-C32-11 | 35.0 | 153.0 | 60.0 | 93.0 | 70.0 | 32.0 | SOMT11T308 | M3.5 | T10 |
| SO36.0-2D-C32-11 | 36.0 | 155.0 | 60.0 | 95.0 | 72.0 | 32.0 | SOMT11T308 | M3.5 | T10 |
| SO37.0-2D-C32-13 | 37.0 | 162.0 | 60.0 | 102.0 | 74.0 | 32.0 | SOMT130408 | M4.0 | T15 |
| SO38.0-2D-C32-13 | 38.0 | 164.0 | 60.0 | 104.0 | 76.0 | 32.0 | SOMT130408 | M4.0 | T15 |
| SO39.0-2D-C32-13 | 39.0 | 166.0 | 60.0 | 106.0 | 78.0 | 32.0 | SOMT130408 | M4.0 | T15 |
| SO40.0-2D-C32-13 | 40.0 | 168.0 | 60.0 | 108.0 | 80.0 | 32.0 | SOMT130408 | M4.0 | T15 |
| SO41.0-2D-C32-13 | 41.0 | 170.0 | 60.0 | 110.0 | 82.0 | 32.0 | SOMT130408 | M4.0 | T15 |
| SO42.0-2D-C32-13 | 42.0 | 182.0 | 70.0 | 112.0 | 84.0 | 32.0 | SOMT130408 | M4.0 | T15 |
| SO43.0-2D-C32-13 | 43.0 | 184.0 | 70.0 | 114.0 | 86.0 | 32.0 | SOMT130408 | M4.0 | T15 |
| SO44.0-2D-C32-15 | 44.0 | 193.0 | 70.0 | 123.0 | 88.0 | 32.0 | SOMT150510 | M5.0 | T20 |
| SO45.0-2D-C32-15 | 45.0 | 195.0 | 70.0 | 125.0 | 90.0 | 32.0 | SOMT150510 | M5.0 | T20 |
| SO46.0-2D-C32-15 | 46.0 | 197.0 | 70.0 | 127.0 | 92.0 | 32.0 | SOMT150510 | M5.0 | T20 |
| SO47.0-2D-C32-15 | 47.0 | 199.0 | 70.0 | 129.0 | 94.0 | 32.0 | SOMT150510 | M5.0 | T20 |
| SO48.0-2D-C32-15 | 48.0 | 201.0 | 70.0 | 131.0 | 96.0 | 32.0 | SOMT150510 | M5.0 | T20 |
| SO49.0-2D-C32-15 | 49.0 | 203.0 | 70.0 | 133.0 | 98.0 | 32.0 | SOMT150510 | M5.0 | T20 |
| SO50.0-2D-C32-15 | 50.0 | 205.0 | 70.0 | 135.0 | 100.0 | 32.0 | SOMT150510 | M5.0 | T20 |
SO_Serisi_3D
| Cat.No | D | L | L1 | L2 | L3 | d | Insert | Screw | Wrench |
| SO12-3D-C20-04 | 12.0 | 106.0 | 50.0 | 56.0 | 36.0 | 20.0 | SOMT040204 | M1.8 | T6 |
| SO12.5-3D-C20-04 | 12.5 | 109.0 | 50.0 | 59.0 | 37.5 | 20.0 | SOMT040204 | M1.8 | T6 |
| SO13-3D-C20-04 | 13.0 | 109.0 | 50.0 | 59.0 | 39.0 | 20.0 | SOMT040204 | M1.8 | T6 |
| SO13.5-3D-C20-04 | 13.5 | 110.0 | 50.0 | 60.0 | 40.5 | 20.0 | SOMT040204 | M1.8 | T6 |
| SO14-3D-C20-05 | 14.0 | 110.0 | 50.0 | 60.0 | 42.0 | 20.0 | SOMT050204 | M2.0 | T6 |
| SO14.5-3D-C20-05 | 14.5 | 114.0 | 50.0 | 64.0 | 43.5 | 20.0 | SOMT050204 | M2.0 | T6 |
| SO15-3D-C20-05 | 15.0 | 114.0 | 50.0 | 64.0 | 45.0 | 20.0 | SOMT050204 | M2.0 | T6 |
| SO15.5-3D-C20-05 | 15.5 | 118.0 | 50.0 | 68.0 | 46.5 | 20.0 | SOMT050204 | M2.0 | T6 |
| SO16-3D-C20-05 | 16.0 | 118.0 | 50.0 | 68.0 | 48.0 | 20.0 | SOMT050204 | M2.0 | T6 |
| SO16.5-3D-C25-06 | 16.5 | 127.0 | 56.0 | 71.0 | 49.5 | 25.0 | SOMT060204 | M2.2 | T7 |
| SO17.0-3D-C25-06 | 17.0 | 127.0 | 56.0 | 71.0 | 51.0 | 25.0 | SOMT060204 | M2.2 | T7 |
| SO17.5-3D-C25-06 | 17.5 | 131.0 | 56.0 | 75.0 | 52.5 | 25.0 | SOMT060204 | M2.2 | T7 |
| SO18.0-3D-C25-06 | 18.0 | 131.0 | 56.0 | 75.0 | 54.0 | 25.0 | SOMT060204 | M2.2 | T7 |
| SO18.5-3D-C25-06 | 18.5 | 134.0 | 56.0 | 78.0 | 55.5 | 25.0 | SOMT060204 | M2.2 | T7 |
| SO19.0-3D-C25-06 | 19.0 | 134.0 | 56.0 | 78.0 | 57.0 | 25.0 | SOMT060204 | M2.2 | T7 |
| SO19.5-3D-C25-07 | 19.5 | 139.0 | 56.0 | 83.0 | 58.5 | 25.0 | SOMT070306 | M2.2 | T7 |
| SO20.0-3D-C25-07 | 20.0 | 139.0 | 56.0 | 83.0 | 60.0 | 25.0 | SOMT070306 | M2.2 | T7 |
| SO20.5-3D-C25-07 | 20.5 | 142.0 | 56.0 | 86.0 | 61.5 | 25.0 | SOMT070306 | M2.2 | T7 |
| SO21.0-3D-C25-07 | 21.0 | 142.0 | 56.0 | 86.0 | 63.0 | 25.0 | SOMT070306 | M2.2 | T7 |
| SO21.5-3D-C25-07 | 21.5 | 145.0 | 56.0 | 89.0 | 64.5 | 25.0 | SOMT070306 | M2.2 | T7 |
| SO22.0-3D-C25-07 | 22.0 | 145.0 | 56.0 | 89.0 | 66.0 | 25.0 | SOMT070306 | M2.2 | T7 |
| SO22.5-3D-C25-08 | 22.5 | 147.0 | 56.0 | 91.0 | 67.5 | 25.0 | SOMT08T306 | M2.5 | T7 |
| SO23.0-3D-C25-08 | 23.0 | 147.0 | 56.0 | 91.0 | 69.0 | 25.0 | SOMT08T306 | M2.5 | T7 |
| SO23.5-3D-C25-08 | 23.5 | 150.0 | 56.0 | 94.0 | 70.5 | 25.0 | SOMT08T306 | M2.5 | T7 |
| SO24.0-3D-C25-08 | 24.0 | 150.0 | 56.0 | 94.0 | 72.0 | 25.0 | SOMT08T306 | M2.5 | T7 |
| SO24.5-3D-C25-08 | 24.5 | 153.0 | 56.0 | 97.0 | 73.5 | 25.0 | SOMT08T306 | M2.5 | T7 |
| SO25.0-3D-C32-08 | 25.0 | 153.0 | 56.0 | 97.0 | 75.0 | 32.0 | SOMT08T306 | M2.5 | T7 |
| SO25.5-3D-C32-08 | 25.5 | 159.0 | 60.0 | 99.0 | 76.5 | 32.0 | SOMT08T306 | M2.5 | T7 |
| SO26.0-3D-C32-08 | 26.0 | 159.0 | 60.0 | 99.0 | 78.0 | 32.0 | SOMT08T306 | M2.5 | T7 |
| SO26.5-3D-C32-09 | 26.5 | 164.0 | 60.0 | 104.0 | 79.5 | 32.0 | SOMT09T308 | M3.5 | T10 |
| SO27.0-3D-C32-09 | 27.0 | 164.0 | 60.0 | 104.0 | 81.0 | 32.0 | SOMT09T308 | M3.5 | T10 |
| SO27.5-3D-C32-09 | 27.5 | 167.0 | 60.0 | 107.0 | 82.5 | 32.0 | SOMT09T308 | M3.5 | T10 |
| SO28.0-3D-C32-09 | 28.0 | 167.0 | 60.0 | 107.0 | 84.0 | 32.0 | SOMT09T308 | M3.5 | T10 |
| SO28.5-3D-C32-09 | 28.5 | 170.0 | 60.0 | 110.0 | 85.5 | 32.0 | SOMT09T308 | M3.5 | T10 |
| SO29.0-3D-C32-09 | 29.0 | 170.0 | 60.0 | 110.0 | 87.0 | 32.0 | SOMT09T308 | M3.5 | T10 |
| SO29.5-3D-C32-09 | 29.5 | 173.0 | 60.0 | 113.0 | 88.5 | 32.0 | SOMT09T308 | M3.5 | T10 |
| SO30.0-3D-C32-09 | 30.0 | 173.0 | 60.0 | 113.0 | 90.0 | 32.0 | SOMT09T308 | M3.5 | T10 |
| SO30.5-3D-C32-09 | 30.5 | 176.0 | 60.0 | 116.0 | 91.5 | 32.0 | SOMT09T308 | M3.5 | T10 |
| SO31.0-3D-C32-09 | 31.0 | 176.0 | 60.0 | 116.0 | 93.0 | 32.0 | SOMT09T308 | M3.5 | T10 |
| SO32.0-3D-C32-11 | 32.0 | 179.0 | 60.0 | 119.0 | 96.0 | 32.0 | SOMT11T308 | M3.5 | T10 |
| SO33.0-3D-C32-11 | 33.0 | 182.0 | 60.0 | 122.0 | 99.0 | 32.0 | SOMT11T308 | M3.5 | T10 |
| SO34.0-3D-C32-11 | 34.0 | 185.0 | 60.0 | 125.0 | 102.0 | 32.0 | SOMT11T308 | M3.5 | T10 |
| SO35.0-3D-C32-11 | 35.0 | 188.0 | 60.0 | 128.0 | 105.0 | 32.0 | SOMT11T308 | M3.5 | T10 |
| SO36.0-3D-C32-11 | 36.0 | 191.0 | 60.0 | 131.0 | 108.0 | 32.0 | SOMT11T308 | M3.5 | T10 |
| SO37.0-3D-C32-11 | 37.0 | 199.0 | 60.0 | 139.0 | 111.0 | 32.0 | SOMT11T308 | M3.5 | T10 |
| SO38.0-3D-C32-13 | 38.0 | 202.0 | 60.0 | 142.0 | 114.0 | 32.0 | SOMT130408 | M4.0 | T15 |
| SO39.0-3D-C32-13 | 39.0 | 205.0 | 60.0 | 145.0 | 117.0 | 32.0 | SOMT130408 | M4.0 | T15 |
| SO40.0-3D-C32-13 | 40.0 | 208.0 | 60.0 | 148.0 | 120.0 | 32.0 | SOMT130408 | M4.0 | T15 |
| SO41.0-3D-C32-13 | 41.0 | 211.0 | 60.0 | 151.0 | 123.0 | 32.0 | SOMT130408 | M4.0 | T15 |
| SO42.0-3D-C32-13 | 42.0 | 224.0 | 70.0 | 154.0 | 126.0 | 40.0 | SOMT130408 | M4.0 | T15 |
| SO43.0-3D-C32-13 | 43.0 | 227.0 | 70.0 | 157.0 | 129.0 | 40.0 | SOMT130408 | M4.0 | T15 |
| SO44.0-3D-C32-15 | 44.0 | 237.0 | 70.0 | 167.0 | 132.0 | 40.0 | SOMT150510 | M5.0 | T20 |
| SO45.0-3D-C32-15 | 45.0 | 240.0 | 70.0 | 170.0 | 135.0 | 40.0 | SOMT150510 | M5.0 | T20 |
| SO46.0-3D-C32-15 | 46.0 | 243.0 | 70.0 | 173.0 | 138.0 | 40.0 | SOMT150510 | M5.0 | T20 |
| SO47.0-3D-C32-15 | 47.0 | 246.0 | 70.0 | 176.0 | 141.0 | 40.0 | SOMT150510 | M5.0 | T20 |
| SO48.0-3D-C32-15 | 48.0 | 249.0 | 70.0 | 179.0 | 144.0 | 40.0 | SOMT150510 | M5.0 | T20 |
| SO49.0-3D-C32-15 | 49.0 | 252.0 | 70.0 | 182.0 | 147.0 | 40.0 | SOMT150510 | M5.0 | T20 |
| SO50.0-3D-C32-15 | 50.0 | 250.0 | 70.0 | 180.0 | 150.0 | 40.0 | SOMT150510 | M5.0 | T20 |
SO_Serisi_4D
| Cat.No | D | L | L1 | L2 | L3 | d | Insert | Screw | Wrench |
| SO12-4D-C20-04 | 12.0 | 118 | 50 | 68 | 48 | 20 | SOMT040204 | M1.8 | T6 |
| SO12.5-4D-C20-04 | 12.5 | 122 | 50 | 72 | 50 | 20 | SOMT040204 | M1.8 | T6 |
| SO13-4D-C20-04 | 13.0 | 122 | 50 | 72 | 52 | 20 | SOMT040204 | M1.8 | T6 |
| SO13.5-4D-C20-04 | 13.5 | 124 | 50 | 74 | 54 | 20 | SOMT040204 | M1.8 | T6 |
| SO14-4D-C20-05 | 14.0 | 124 | 50 | 74 | 56 | 20 | SOMT050204 | M2.0 | T6 |
| SO14.5-4D-C20-05 | 14.5 | 129 | 50 | 79 | 58 | 20 | SOMT050204 | M2.0 | T6 |
| SO15-4D-C20-05 | 15.0 | 129 | 50 | 79 | 60 | 20 | SOMT050204 | M2.0 | T6 |
| SO15.5-4D-C20-05 | 15.5 | 134 | 50 | 84 | 62 | 20 | SOMT050204 | M2.0 | T6 |
| SO16-4D-C20-05 | 16.0 | 134 | 50 | 84 | 20 | SOMT050204 | M2.0 | T6 | |
| SO16.5-4D-C25-06 | 16.5 | 144 | 56 | 88 | 66 | 25 | SOMT060204 | M2.2 | T7 |
| SO17.0-4D-C25-06 | 17.0 | 144 | 56 | 88 | 68 | 25 | SOMT060204 | M2.2 | T7 |
| SO17.5-4D-C25-06 | 17.5 | 149 | 56 | 93 | 70 | 25 | SOMT060204 | M2.2 | T7 |
| SO18.0-4D-C25-06 | 18.0 | 149 | 56 | 93 | 72 | 25 | SOMT060204 | M2.2 | T7 |
| SO18.5-4D-C25-06 | 18.5 | 153 | 56 | 97 | 74 | 25 | SOMT060204 | M2.2 | T7 |
| SO19.0-4D-C25-06 | 19.0 | 153 | 56 | 97 | 76 | 25 | SOMT060204 | M2.2 | T7 |
| SO19.5-4D-C25-07 | 19.5 | 159 | 56 | 103 | 78 | 25 | SOMT070306 | M2.2 | T7 |
| SO20.0-4D-C25-07 | 20.0 | 159 | 56 | 103 | 80 | 25 | SOMT070306 | M2.2 | T7 |
| SO20.5-4D-C25-07 | 20.5 | 163 | 56 | 107 | 82 | 25 | SOMT070306 | M2.2 | T7 |
| SO21.0-4D-C25-07 | 21.0 | 163 | 56 | 107 | 84 | 25 | SOMT070306 | M2.2 | T7 |
| SO21.5-4D-C25-07 | 21.5 | 167 | 56 | 111 | 86 | 25 | SOMT070306 | M2.2 | T7 |
| SO22.0-4D-C25-07 | 22.0 | 167 | 56 | 111 | 88 | 25 | SOMT070306 | M2.2 | T7 |
| SO22.5-4D-C25-08 | 22.5 | 170 | 56 | 114 | 90 | 25 | SOMT08T306 | M2.5 | T7 |
| SO23.0-4D-C25-08 | 23.0 | 170 | 56 | 114 | 92 | 25 | SOMT08T306 | M2.5 | T7 |
| SO23.5-4D-C25-08 | 23.5 | 174 | 56 | 118 | 94 | 25 | SOMT08T306 | M2.5 | T7 |
| SO24.0-4D-C25-08 | 24.0 | 174 | 56 | 118 | 96 | 25 | SOMT08T306 | M2.5 | T7 |
| SO24.5-4D-C25-08 | 24.5 | 178 | 56 | 122 | 98 | 25 | SOMT08T306 | M2.5 | T7 |
| SO25.0-4D-C32-08 | 25.0 | 178 | 56 | 122 | 100 | 32 | SOMT08T306 | M2.5 | T7 |
| SO25.5-4D-C32-08 | 25.5 | 185 | 60 | 125 | 102 | 32 | SOMT08T306 | M2.5 | T7 |
| SO26.0-4D-C32-08 | 26.0 | 185 | 60 | 125 | 104 | 32 | SOMT08T306 | M2.5 | T7 |
| SO26.5-4D-C32-09 | 26.5 | 191 | 60 | 131 | 106 | 32 | SOMT09T308 | M3.5 | T10 |
| SO27.0-4D-C32-09 | 27.0 | 191 | 60 | 131 | 108 | 32 | SOMT09T308 | M3.5 | T10 |
| SO27.5-4D-C32-09 | 27.5 | 195 | 60 | 135 | 110 | 32 | SOMT09T308 | M3.5 | T10 |
| SO28.0-4D-C32-09 | 28.0 | 195 | 60 | 135 | 112 | 32 | SOMT09T308 | M3.5 | T10 |
| SO28.5-4D-C32-09 | 28.5 | 199 | 60 | 139 | 114 | 32 | SOMT09T308 | M3.5 | T10 |
| SO29.0-4D-C32-09 | 29.0 | 199 | 60 | 139 | 116 | 32 | SOMT09T308 | M3.5 | T10 |
| SO29.5-4D-C32-09 | 29.5 | 203 | 60 | 143 | 118 | 32 | SOMT09T308 | M3.5 | T10 |
| SO30.0-4D-C32-09 | 30.0 | 203 | 60 | 143 | 120 | 32 | SOMT09T308 | M3.5 | T10 |
| SO30.5-4D-C32-09 | 30.5 | 207 | 60 | 147 | 122 | 32 | SOMT09T308 | M3.5 | T10 |
| SO31.0-4D-C32-09 | 31.0 | 207 | 60 | 147 | 124 | 32 | SOMT09T308 | M3.5 | T10 |
| SO32.0-4D-C32-11 | 32.0 | 211 | 60 | 151 | 128 | 32 | SOMT11T308 | M3.5 | T10 |
| SO33.0-4D-C32-11 | 33.0 | 215 | 60 | 155 | 132 | 32 | SOMT11T308 | M3.5 | T10 |
| SO34.0-4D-C32-11 | 34.0 | 219 | 60 | 159 | 136 | 32 | SOMT11T308 | M3.5 | T10 |
| SO35.0-4D-C32-11 | 35.0 | 223 | 60 | 163 | 140 | 32 | SOMT11T308 | M3.5 | T10 |
| SO36.0-4D-C32-11 | 36.0 | 227 | 60 | 167 | 144 | 32 | SOMT11T308 | M3.5 | T10 |
| SO37.0-4D-C32-11 | 37.0 | 236 | 60 | 176 | 148 | 32 | SOMT11T308 | M3.5 | T10 |
| SO38.0-4D-C32-13 | 38.0 | 240 | 60 | 180 | 152 | 32 | SOMT130408 | M4.0 | T15 |
| SO39.0-4D-C32-13 | 39.0 | 244 | 60 | 184 | 156 | 32 | SOMT130408 | M4.0 | T15 |
| SO40.0-4D-C32-13 | 40.0 | 248 | 60 | 188 | 160 | 32 | SOMT130408 | M4.0 | T15 |
| SO41.0-4D-C32-13 | 41.0 | 252 | 60 | 192 | 164 | 32 | SOMT130408 | M4.0 | T15 |
| SO42.0-4D-C32-13 | 42.0 | 266 | 70 | 196 | 168 | 40 | SOMT130408 | M4.0 | T15 |
| SO43.0-4D-C32-13 | 43.0 | 270 | 70 | 200 | 172 | 40 | SOMT130408 | M4.0 | T15 |
| SO44.0-4D-C32-15 | 44.0 | 281 | 70 | 211 | 176 | 40 | SOMT150510 | M5.0 | T20 |
| SO45.0-4D-C32-15 | 45.0 | 285 | 70 | 215 | 180 | 40 | SOMT150510 | M5.0 | T20 |
| SO46.0-4D-C32-15 | 46.0 | 289 | 70 | 219 | 184 | 40 | SOMT150510 | M5.0 | T20 |
| SO47.0-4D-C32-15 | 47.0 | 293 | 70 | 223 | 188 | 40 | SOMT150510 | M5.0 | T20 |
| SO48.0-4D-C32-15 | 48.0 | 297 | 70 | 227 | 192 | 40 | SOMT150510 | M5.0 | T20 |
| SO49.0-4D-C32-15 | 49.0 | 301 | 70 | 231 | 196 | 40 | SOMT150510 | M5.0 | T20 |
| SO50.0-4D-C32-15 | 50.0 | 305 | 70 | 235 | 200 | 40 | SOMT150510 | M5.0 | T20 |
SO_Serisi_5D
| Cat.No | D | L | L1 | L2 | L3 | d | Insert | Screw | Wrench |
| SO12-5D-C20-04 | 12.0 | 130 | 50 | 80 | 60.0 | 20 | SOMT040204 | M1.8 | T6 |
| SO12.5-5D-C20-04 | 12.5 | 135 | 50 | 85 | 62.5 | 20 | SOMT040204 | M1.8 | T6 |
| SO13-5D-C20-04 | 13.0 | 135 | 50 | 85 | 65.0 | 20 | SOMT040204 | M1.8 | T6 |
| SO13.5-5D-C20-04 | 13.5 | 138 | 50 | 88 | 67.5 | 20 | SOMT040204 | M1.8 | T6 |
| SO14-5D-C20-05 | 14.0 | 138 | 50 | 88 | 70.0 | 20 | SOMT050204 | M2.0 | T6 |
| SO14.5-5D-C20-05 | 14.5 | 144 | 50 | 94 | 72.5 | 20 | SOMT050204 | M2.0 | T6 |
| SO15-5D-C20-05 | 15.0 | 144 | 50 | 94 | 75.0 | 20 | SOMT050204 | M2.0 | T6 |
| SO15.5-5D-C20-05 | 15.5 | 150 | 50 | 100 | 77.5 | 20 | SOMT050204 | M2.0 | T6 |
| SO16-5D-C20-05 | 16.0 | 150 | 50 | 100 | 80.0 | 20 | SOMT050204 | M2.0 | T6 |
| SO16.5-5D-C25-06 | 16.5 | 161 | 56 | 105 | 82.5 | 25 | SOMT060204 | M2.2 | T7 |
| SO17.0-5D-C25-06 | 17.0 | 161 | 56 | 105 | 85.0 | 25 | SOMT060204 | M2.2 | T7 |
| SO17.5-5D-C25-06 | 17.5 | 167 | 56 | 111 | 87.5 | 25 | SOMT060204 | M2.2 | T7 |
| SO18.0-5D-C25-06 | 18.0 | 167 | 56 | 111 | 90.0 | 25 | SOMT060204 | M2.2 | T7 |
| SO18.5-5D-C25-06 | 18.5 | 172 | 56 | 116 | 92.5 | 25 | SOMT060204 | M2.2 | T7 |
| SO19.0-5D-C25-06 | 19.0 | 172 | 56 | 116 | 95.0 | 25 | SOMT060204 | M2.2 | T7 |
| SO19.5-5D-C25-07 | 19.5 | 179 | 56 | 123 | 97.5 | 25 | SOMT070306 | M2.2 | T7 |
| SO20.0-5D-C25-07 | 20.0 | 179 | 56 | 123 | 100.0 | 25 | SOMT070306 | M2.2 | T7 |
| SO20.5-5D-C25-07 | 20.5 | 184 | 56 | 128 | 102.5 | 25 | SOMT070306 | M2.2 | T7 |
| SO21.0-5D-C25-07 | 21.0 | 184 | 56 | 128 | 105.0 | 25 | SOMT070306 | M2.2 | T7 |
| SO21.5-5D-C25-07 | 21.5 | 189 | 56 | 133 | 107.5 | 25 | SOMT070306 | M2.2 | T7 |
| SO22.0-5D-C25-07 | 22.0 | 189 | 56 | 133 | 110.0 | 25 | SOMT070306 | M2.2 | T7 |
| SO22.5-5D-C25-08 | 22.5 | 193 | 56 | 137 | 112.5 | 25 | SOMT08T306 | M2.5 | T7 |
| SO23.0-5D-C25-08 | 23.0 | 193 | 56 | 137 | 115.0 | 25 | SOMT08T306 | M2.5 | T7 |
| SO23.5-5D-C25-08 | 23.5 | 198 | 56 | 142 | 117.5 | 25 | SOMT08T306 | M2.5 | T7 |
| SO24.0-5D-C25-08 | 24.0 | 198 | 56 | 142 | 120.0 | 25 | SOMT08T306 | M2.5 | T7 |
| SO24.5-5D-C25-08 | 24.5 | 203 | 56 | 147 | 122.5 | 25 | SOMT08T306 | M2.5 | T7 |
| SO25.0-5D-C32-08 | 25.0 | 203 | 56 | 147 | 125.0 | 32 | SOMT08T306 | M2.5 | T7 |
| SO25.5-5D-C32-08 | 25.5 | 211 | 60 | 151 | 127.5 | 32 | SOMT08T306 | M2.5 | T7 |
| SO26.0-5D-C32-08 | 26.0 | 211 | 60 | 151 | 130.0 | 32 | SOMT08T306 | M2.5 | T7 |
| SO26.5-5D-C32-09 | 26.5 | 218 | 60 | 158 | 132.5 | 32 | SOMT09T308 | M3.5 | T10 |
| SO27.0-5D-C32-09 | 27.0 | 218 | 60 | 158 | 135.0 | 32 | SOMT09T308 | M3.5 | T10 |
| SO27.5-5D-C32-09 | 27.5 | 223 | 60 | 163 | 137.5 | 32 | SOMT09T308 | M3.5 | T10 |
| SO28.0-5D-C32-09 | 28.0 | 223 | 60 | 163 | 140.0 | 32 | SOMT09T308 | M3.5 | T10 |
| SO28.5-5D-C32-09 | 28.5 | 228 | 60 | 168 | 142.5 | 32 | SOMT09T308 | M3.5 | T10 |
| SO29.0-5D-C32-09 | 29.0 | 228 | 60 | 168 | 145.0 | 32 | SOMT09T308 | M3.5 | T10 |
| SO29.5-5D-C32-09 | 29.5 | 233 | 60 | 173 | 147.5 | 32 | SOMT09T308 | M3.5 | T10 |
| SO30.0-5D-C32-09 | 30.0 | 233 | 60 | 173 | 150.0 | 32 | SOMT09T308 | M3.5 | T10 |
| SO30.5-5D-C32-09 | 30.5 | 238 | 60 | 178 | 152.5 | 32 | SOMT09T308 | M3.5 | T10 |
| SO31.0-5D-C32-09 | 31.0 | 238 | 60 | 178 | 155.0 | 32 | SOMT09T308 | M3.5 | T10 |
| SO32.0-5D-C32-11 | 32.0 | 243 | 60 | 183 | 160.0 | 32 | SOMT11T308 | M3.5 | T10 |
| SO33.0-5D-C32-11 | 33.0 | 248 | 60 | 188 | 165.0 | 32 | SOMT11T308 | M3.5 | T10 |
| SO34.0-5D-C32-11 | 34.0 | 253 | 60 | 193 | 170.0 | 32 | SOMT11T308 | M3.5 | T10 |
| SO35.0-5D-C32-11 | 35.0 | 258 | 60 | 198 | 175.0 | 32 | SOMT11T308 | M3.5 | T10 |
| SO36.0-5D-C32-11 | 36.0 | 263 | 60 | 203 | 180.0 | 32 | SOMT11T308 | M3.5 | T10 |
| SO37.0-5D-C32-11 | 37.0 | 273 | 60 | 213 | 185.0 | 32 | SOMT11T308 | M3.5 | T10 |
| SO38.0-5D-C32-13 | 38.0 | 278 | 60 | 218 | 190.0 | 32 | SOMT130408 | M4.0 | T15 |
| SO39.0-5D-C32-13 | 39.0 | 283 | 60 | 223 | 195.0 | 32 | SOMT130408 | M4.0 | T15 |
| SO40.0-5D-C32-13 | 40.0 | 288 | 60 | 228 | 200.0 | 32 | SOMT130408 | M4.0 | T15 |
| SO41.0-5D-C32-13 | 41.0 | 293 | 60 | 233 | 205.0 | 32 | SOMT130408 | M4.0 | T15 |
| SO42.0-5D-C32-13 | 42.0 | 308 | 70 | 238 | 210.0 | 40 | SOMT130408 | M4.0 | T15 |
| SO43.0-5D-C32-13 | 43.0 | 313 | 70 | 243 | 215.0 | 40 | SOMT130408 | M4.0 | T15 |
| SO44.0-5D-C32-15 | 44.0 | 325 | 70 | 255 | 220.0 | 40 | SOMT150510 | M5.0 | T20 |
| SO45.0-5D-C32-15 | 45.0 | 330 | 70 | 260 | 225.0 | 40 | SOMT150510 | M5.0 | T20 |
| SO46.0-5D-C32-15 | 46.0 | 335 | 70 | 265 | 230.0 | 40 | SOMT150510 | M5.0 | T20 |
| SO47.0-5D-C32-15 | 47.0 | 340 | 70 | 270 | 235.0 | 40 | SOMT150510 | M5.0 | T20 |
| SO48.0-5D-C32-15 | 48.0 | 345 | 70 | 275 | 240.0 | 40 | SOMT150510 | M5.0 | T20 |
| SO49.0-5D-C32-15 | 49.0 | 350 | 70 | 280 | 245.0 | 40 | SOMT150510 | M5.0 | T20 |
| SO50.0-5D-C32-15 | 50.0 | 355 | 70 | 285 | 250.0 | 40 | SOMT150510 | M5.0 | T20 |
