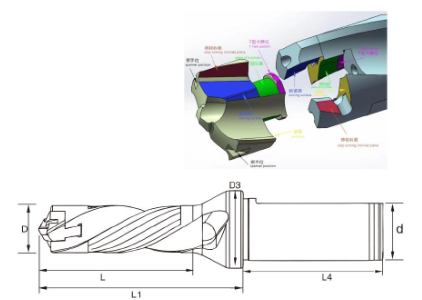

| Cat.No | Dmin | Dmax | L | d | D3 | L1 | L4 | Po.Size | Insert |
| ICD 115-035-16A-3D | 11.5 | 11.9 | 35.0 | 16.0 | 20.0 | 0.0 | 51.1 | 48.0 | ICD115-119 |
| ICD 120-036-16A-3D | 12.0 | 12.4 | 38.0 | 16.0 | 20.0 | 53.0 | 48.0 | 12.0 | ICD120-124 |
| ICD 125-037-16A-3D | 12.5 | 12.9 | 37.0 | 16.0 | 20.0 | 54.5 | 48.0 | 12.5 | ICD125-129 |
| ICD 130-039-16A-3D | 13.0 | 13.4 | 39.0 | 16.0 | 20.0 | 56.6 | 48.0 | 13.0 | ICD130-134 |
| ICD 135-041-16A-3D | 13.5 | 13.9 | 41.0 | 16.0 | 20.0 | 58.1 | 48.0 | 13.5 | ICD135-139 |
| ICD 140-042-16A-3D | 14.0 | 14.4 | 42.0 | 16.0 | 20.0 | 62.1 | 48.0 | 14.0 | ICD140-144 |
| ICD 145-044-16A-3D | 14.5 | 14.9 | 44.0 | 16.0 | 20.0 | 63.6 | 48.0 | 14.5 | ICD145-149 |
| ICD 150-045-20A-3D | 15.0 | 15.9 | 45.0 | 20.0 | 25.0 | 68.7 | 50.0 | 15.0 | ICD150-159 |
| ICD 160-048-20A-3D | 16.0 | 16.9 | 48.0 | 20.0 | 25.0 | 73.3 | 50.0 | 16.0 | ICD160-169 |
| ICD 170-051-20A-3D | 17.0 | 17.9 | 51.0 | 20.0 | 26.0 | 77.9 | 50.0 | 17.0 | ICD170-179 |
| ICD 180-054-25A-3D | 18.0 | 18.9 | 54.0 | 25.0 | 32.0 | 82.5 | 56.0 | 18.0 | ICD180-189 |
| ICD 200-060-25A-3D | 20.0 | 20.9 | 60.0 | 25.0 | 32.0 | 91.6 | 56.0 | 20.0 | ICD200-209 |
| ICD 210-063-25A-3D | 21.0 | 21.9 | 63.0 | 25.0 | 32.0 | 96.2 | 56.0 | 21.0 | ICD210-219 |
| ICD 220-066-25A-3D | 22.0 | 22.9 | 66.0 | 25.0 | 32.0 | 100.8 | 56.0 | 22.0 | ICD220-229 |
| ICD 230-069-32A-3D | 23.0 | 23.0 | 90.0 | 69.0 | 32.0 | 42.0 | 105.4 | 60.0 | ICD230-239 |
| ICD 240-072-32A-3D | 24.0 | 24.9 | 72.0 | 32.0 | 42.0 | 110.0 | 60.0 | 24.0 | ICD240-249 |
| ICD 250-075-32A-3D | 25.0 | 25.9 | 75.0 | 32.0 | 42.0 | 114.5 | 60.0 | 25.0 | ICD250-259 |
| ICD 260-078-32A-3D | 26.0 | 26.9 | 78.0 | 32.0 | 42.0 | 119.0 | 60.0 | 26.0 | ICD260-269 |
| ICD 270-081-32A-3D | 27.0 | 27.9 | 81.0 | 32.0 | 42.0 | 128.7 | 60.0 | 27.0 | ICD270-279 |
| ICD 280-084-32A-3D | 28.0 | 28.9 | 84.0 | 32.0 | 42.0 | 128.2 | 60.0 | 28.0 | ICD280-289 |
| ICD 290-087-32A-3D | 29.0 | 29.9 | 87.0 | 32.0 | 42.0 | 132.8 | 60.0 | 29.0 | ICD290-299 |
| ICD 300-090-32A-3D | 30.0 | 30.9 | 90.0 | 32.0 | 42.0 | 137.4 | 60.0 | 30.0 | ICD300-309 |
| ICD 310-093-32A-3D | 31.0 | 31.9 | 93.0 | 32.0 | 42.0 | 142.0 | 60.0 | 31.0 | ICD310-319 |
| ICD 320-096-32A-3D | 32.0 | 32.9 | 96.0 | 32.0 | 42.0 | 146.5 | 60.0 | 32.0 | ICD320-329 |
| Cat.No | Dmin | Dmax | L | d | D3 | L1 | L4 | Po.Size | Insert |
| ICD 110-055-16A-5D | 11.0 | 11.4 | 55.0 | 16.0 | 20.0 | 71.6 | 48.0 | 11.0 | |
| ICD 115-058-16A-5D | 11.5 | 11.9 | 8.0 | 16.0 | 20.0 | 74.1 | 48.0 | 11.5 | ICD115-119 |
| ICD 120-060-16A-5D | 12.0 | 12.4 | 60.0 | 16.0 | 20.0 | 77.0 | 48.0 | 12.0 | |
| ICD 125-062-16A-5D | 12.5 | 12.9 | 62.0 | 16.0 | 20.0 | 79.5 | 48.0 | 12.5 | ICD125-129 |
| ICD 130-065-16A-5D | 43.0 | 13.4 | 65.0 | 16.0 | 20.0 | 82.6 | 48.0 | 13.0 | ICD130-134 |
| ICD 135-068-16A-5D | 13.5 | 13.9 | 68.0 | 16.0 | 20.0 | 85.1 | 48.0 | 13.5 | ICD135-139 |
| ICD 140-070-16A-5D | 14.0 | 14.4 | 70.0 | 16.0 | 20.0 | 90.2 | 48.0 | 14.0 | |
| ICD 145-073-16A-5D | 14.5 | 14.9 | 78.0 | 16.0 | 20.0 | 92.7 | 48.0 | 14.5 | ICD145-149 |
| ICD 150-075-20A-5D | 18.0 | 15.9 | 75.0 | 20.0 | 95.0 | 98.7 | 50.0 | 15.0 | ICD150-159 |
| ICD 160-080-20A-5D | 16.0 | 16.9 | 80.0 | 20.0 | 95.0 | 105.3 | 50.0 | 16.0 | ICD160-169 |
| ICD 170-085-20A-5D | 17.0 | 17.9 | 85.0 | 20.0 | 25.0 | 111.9 | 50.0 | 17.0 | |
| ICD 180-090-25A-5D | 18.0 | 18.9 | 90.0 | 25.0 | 32.0 | 118.5 | 56.0 | 18.0 | ICD180-189 |
| ICD 190-095-25A-5D | 19.0 | 19.9 | 95.0 | 26.0 | 32.0 | 0.0 | 125.0 | 56.0 | ICD190-199 |
| ICD 200-100-25A-5D | 20.0 | 20.9 | 100.0 | 25.0 | 32.0 | 131.6 | 56.0 | 20.0 | |
| ICD 210-105-25A-5D | 21.0 | 21.9 | 108.0 | 25.0 | 32.0 | 198.2 | 56.0 | 21.0 | |
| ICD 220-110-25A-5D | 22.0 | 22.0 | 90.0 | 110.0 | 25.0 | 32.0 | 144.8 | 56.0 | |
| ICD 230-115-32A-5D | 23.0 | 23.9 | 115.0 | 32.0 | 42.0 | 151.4 | 60.0 | 23.0 | |
| ICD 240-120-32A-5D | 24.0 | 0.0 | 24.9 | 120.0 | 32.0 | 42.0 | 158.0 | 60.0 | |
| ICD 250-125-32A-5D | 25.0 | 25.9 | 125.0 | 32.0 | 42.0 | 164.5 | 60.0 | 25.0 | |
| ICD 260-130-32A-5D | 26.0 | 26.9 | 130.0 | 32.0 | 42.0 | 171.0 | 60.0 | 26.0 | ICD260-269 |
| ICD 270-135-32A-5D | 27.0 | 27.9 | 135.0 | 32.0 | 42.0 | 177.7 | 60.0 | 27.0 | ICD270-279 |
| ICD 280-140-32A-5D | 28.0 | 28.9 | 140.0 | 32.0 | 42.0 | 184.2 | 60.0 | 28.0 | ICD280-289 |
| ICD 290-145-32A-5D | 29.0 | 29.9 | 148.0 | 32.0 | 42.0 | 190.8 | 60.0 | 29.0 | |
| ICD 300-150-32A-5D | 30.0 | 30.9 | 150.0 | 32.0 | 42.0 | 197.4 | 60.0 | 30.0 | ICD300-309 |
| ICD 310-155-32A-5D | 31.0 | 31.9 | 155.0 | 32.0 | 42.0 | 204.0 | 60.0 | 31.0 |
| Cat.No | Dmin | Dmax | L | d | D3 | L1 | L4 | Po.Size | Insert |
| ICD 110-088-16A-8D | 11.0 | 11.4 | 88.0 | 16.0 | 20.0 | 104.6 | 48.0 | 11.0 | |
| ICD 115-092-16A-8D | 11.5 | 11.9 | 92.0 | 16.0 | 20.0 | 108.6 | 48.0 | 11.5 | ICD115-119 |
| ICD 120-096-16A-8D | 12.0 | 12.4 | 96.0 | 16.0 | 20.0 | 113.0 | 48.0 | 12.0 | |
| ICD 125-100-16A-8D | 12.5 | 12.9 | 100.0 | 16.0 | 20.0 | 117.0 | 48.0 | 12.5 | ICD125-129 |
| ICD 130-104-16A-8D | 13.0 | 13.4 | 104.0 | 16.0 | 20.0 | 121.6 | 48.0 | 13.0 | ICD130-134 |
| ICD 135-108-16A-8D | 13.5 | 13.9 | 108.0 | 16.0 | 20.0 | 125.6 | 48.0 | 13.5 | ICD135-139 |
| ICD 140-112-16A-8D | 14.0 | 14.4 | 112.0 | 16.0 | 20.0 | 132.1 | 48.0 | 14.0 | ICD140-144 |
| ICD 145-116-16A-8D | 14.5 | 14.9 | 116.0 | 16.0 | 20.0 | 136.2 | 48.0 | 14.5 | ICD145-149 |
| ICD 150-120-20A-8D | 15.0 | 15.9 | 120.0 | 20.0 | 25.0 | 143.7 | 50.0 | 15.0 | ICD150-159 |
| ICD 160-128-20A-8D | 16.0 | 16.9 | 128.0 | 20.0 | 25.0 | 153.3 | 50.0 | 16.0 | ICD160-169 |
| ICD 170-136-20A-8D | 17.0 | 17.9 | 136.0 | 20.0 | 25.0 | 162.9 | 50.0 | 17.0 | |
| ICD 180-144-25A-8D | 18.0 | 18.9 | 144.0 | 25.0 | 32.0 | 172.5 | 56.0 | 18.0 | ICD180-189 |
| ICD 190-152-25A-8D | 19.0 | 19.9 | 152.0 | 25.0 | 32.0 | 182.0 | 56.0 | 19.0 | ICD190-199 |
| ICD 200-160-25A-8D | 20.0 | 20.9 | 160.0 | 25.0 | 32.0 | 191.6 | 56.0 | 20.0 | |
| ICD 210-168-25A-8D | 21.0 | 21.9 | 168.0 | 25.0 | 32.0 | 201.2 | 56.0 | 21.0 | ICD210-219 |
| ICD 220-176-25A-8D | 22.0 | 22.9 | 176.0 | 25.0 | 32.0 | 210.8 | 56.0 | 22.0 | ICD220-229 |
| ICD 230-184-32A-8D | 23.0 | 23.0 | 90.0 | 184.0 | 32.0 | 42.0 | 220.4 | 60.0 | |
| ICD 240-192-32A-8D | 24.0 | 24.9 | 192.0 | 32.0 | 42.0 | 230.0 | 60.0 | 24.0 | ICD240-249 |
| ICD 250-200-32A-8D | 25.0 | 25.9 | 200.0 | 32.0 | 42.0 | 239.5 | 60.0 | 25.0 | ICD250-259 |
| ICD 260-208-32A-8D | 26.0 | 26.9 | 208.0 | 32.0 | 42.0 | 249.3 | 60.0 | 26.0 | ICD260-269 |
| ICD 270-216-32A-8D | 27.0 | 27.9 | 216.0 | 32.0 | 42.0 | 258.6 | 60.0 | 27.0 | ICD270-279 |
| ICD 280-224-32A-8D | 28.0 | 28.9 | 224.0 | 32.0 | 42.0 | 268.2 | 60.0 | 28.0 | ICD280-289 |
| ICD 290-232-32A-8D | 29.0 | 29.9 | 232.0 | 32.0 | 42.0 | 277.8 | 60.0 | 29.0 | ICD290-299 |
| ICD 300-240-32A-8D | 30.0 | 30.9 | 240.0 | 32.0 | 42.0 | 287.4 | 60.0 | 30.0 | ICD300-309 |
| ICD 310-248-32A-8D | 31.0 | 31.9 | 248.0 | 32.0 | 42.0 | 297.0 | 60.0 | 31.0 |
| Cat.No | Dmin | Dmax | L | d | D3 | L1 | L4 | Po.Size | Insert |
| ICD 120-144-16R-12D | 12.0 | 12.4 | 144.0 | 16.0 | 20.0 | 161.0 | 45.0 | 12.0 | ICD120-124 |
| ICD 125-150-16R-12D | 12.5 | 12.9 | 150.0 | 16.0 | 20.0 | 167.0 | 48.0 | 12.0 | ICD125-129 |
| ICD 130-156-16R-12D | 13.0 | 13.4 | 156.0 | 16.0 | 20.0 | 173.6 | 48.0 | 13.0 | ICD130-134 |
| ICD 135-162-16R-12D | 13.5 | 13.9 | 162.0 | 16.0 | 20.0 | 179.0 | 48.0 | 13.0 | ICD135-139 |
| ICD 140-168-16R-12D | 14.0 | 14.4 | 168.0 | 16.0 | 20.0 | 188.0 | 48.0 | 14.0 | ICD140-144 |
| ICD 145-174-16R-12D | 14.5 | 14.9 | 174.0 | 16.0 | 20.0 | 194.0 | 48.0 | 14.0 | ICD145-149 |
| ICD 150-180-20R-12D | 15.0 | 15.9 | 180.0 | 20.0 | 25.0 | 210.0 | 50.0 | 15.0 | ICD150-159 |
| ICD 160-192-20R-12D | 16.0 | 16.9 | 192.0 | 20.0 | 25.0 | 217.3 | 50.0 | 16.0 | ICD160-169 |
| ICD 170-204-20R-12D | 17.0 | 17.9 | 204.0 | 20.0 | 25.0 | 280.9 | 50.0 | 17.0 | ICD170-179 |
| ICD 180-216-25R-12D | 18.0 | 18.9 | 216.0 | 25.0 | 32.0 | 244.5 | 56.0 | 18.0 | ICD180-189 |
| ICD 190-228-25R-12D | 19.0 | 49.9 | 228.0 | 25.0 | 32.0 | 258.0 | 56.0 | 19.0 | ICD190-199 |
| ICD 200-240-25R-12D | 20.0 | 20.9 | 240.0 | 25.0 | 32.0 | 271.6 | 56.0 | 20.0 | ICD200-209 |
| ICD 210-252-25R-12D | 21.0 | 21.9 | 252.0 | 25.0 | 32.0 | 285.2 | 56.0 | 21.0 | ICD210-219 |
| ICD 220-264-25R-12D | 22.0 | 22.9 | 264.0 | 25.0 | 32.0 | 298.8 | 56.0 | 22.0 | ICD220-229 |
| ICD 230-276-32R-12D | 23.0 | 23.9 | 276.0 | 32.0 | 42.0 | 302.4 | 60.0 | 23.0 | ICD230-239 |
| ICD 240-288-32R-12D | 24.0 | 24.9 | 288.0 | 32.0 | 42.0 | 326.0 | 60.0 | 24.0 | ICD240-249 |
| ICD 250-300-32R-12D | 25.0 | 25.9 | 300.0 | 32.0 | 42.0 | 339.5 | 60.0 | 25.0 | ICD250-259 |
| ICD 260-312-32R-12D | 26.0 | 26.9 | 312.0 | 32.0 | 42.0 | 353.1 | 60.0 | 26.0 | ICD260-269 |
| ICD 270-324-32R-12D | 27.0 | 27.9 | 324.0 | 32.0 | 42.0 | 366.7 | 60.0 | 27.0 | ICD270-279 |
| ICD 280-336-32R-12D | 28.0 | 28.9 | 336.0 | 32.0 | 42.0 | 380.2 | 60.0 | 28.0 | ICD280-289 |
| ICD 290-348-32R-12D | 29.0 | 29.9 | 348.0 | 32.0 | 42.0 | 393.8 | 60.0 | 29.0 | ICD290-299 |
| ICD 300-360-32R-12D | 30.0 | 30.9 | 360.0 | 32.0 | 42.0 | 407.4 | 60.0 | 30.0 | ICD300-309 |
| ICD 310-372-32R-12D | 31.0 | 31.9 | 372.0 | 32.0 | 42.0 | 421.0 | 60.0 | 31.0 | ICD310-319 |

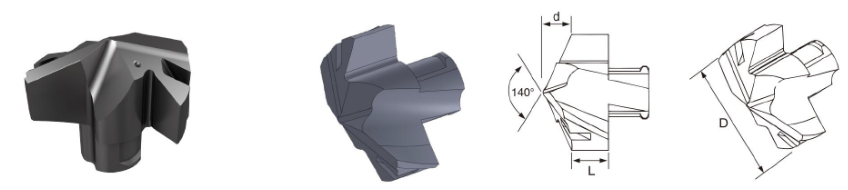

| Dmin | d | L | SSC |
| 5.5 | 0.81 | 3.04 | 6.0 |
| 5.9 | 0.88 | 2.97 | 6.0 |
| 6.0 | 0.96 | 3.04 | 6.0 |
| 6.2 | 1.0 | 3.0 | 6.0 |
| 6.5 | 1.18 | 3.12 | 6.0 |
| 7.0 | 1.03 | 3.57 | 7.0 |
| 7.2 | 1.05 | 3.55 | 7.0 |
| 10.2 | 1.54 | 4.66 | 10.0 |
| 10.4 | 1.57 | 4.63 | 10.0 |
| 10.5 | 1.59 | 4.61 | 10.0 |
| 10.6 | 1.61 | 4.59 | 11.0 |
| 10.7 | 1.63 | 4.57 | 11.0 |
| 10.8 | 1.65 | 4.55 | 11.0 |
| 10.9 | 1.66 | 4.54 | 11.0 |
| 11.8 | 1.82 | 4.78 | 12.0 |
| 12.0 | 1.82 | 5.18 | 12.0 |
| 12.2 | 1.86 | 5.14 | 12.0 |
| 12.3 | 1.87 | 5.13 | 12.0 |
| 12.4 | 1.89 | 5.11 | 12.0 |
| 12.4 | 1.84 | 5.16 | 12.0 |
| 12.5 | 1.91 | 5.09 | 12.0 |
| 12.6 | 1.93 | 5.07 | 13.0 |
| 12.7 | 1.95 | 5.05 | 13.0 |
| 12.8 | 1.97 | 5.03 | 13.0 |
| 12.9 | 1.98 | 5.02 | 13.0 |
| 13.2 | 2.0 | 5.6 | 13.0 |
| 13.3 | 2.01 | 5.59 | 13.0 |
| 13.4 | 2.03 | 5.57 | 13.0 |
| 13.5 | 2.05 | 5.55 | 14.0 |
| 13.6 | 2.07 | 5.53 | 14.0 |
| 14.0 | 2.12 | 6.03 | 14.0 |
| 14.2 | 2.16 | 5.99 | 14.0 |
| 14.6 | 2.23 | 5.92 | 15.0 |
| 14.7 | 2.25 | 5.9 | 15.0 |
| 14.8 | 2.27 | 5.88 | 15.0 |
| 14.9 | 2.28 | 5.87 | 15.0 |
| 15.4 | 2.34 | 6.39 | 15.0 |
| 15.5 | 2.36 | 6.37 | 16.0 |
| 16.0 | 2.42 | 6.88 | 16.0 |
| 16.1 | 2.29 | 6.44 | 16.0 |
| 16.2 | 2.46 | 6.84 | 16.0 |
| 16.4 | 2.49 | 6.81 | 16.0 |
| 16.7 | 2.55 | 6.75 | 17.0 |
| 17.0 | 2.59 | 7.31 | 17.0 |
| 17.2 | 2.63 | 7.27 | 17.0 |
| 17.3 | 2.64 | 7.26 | 17.0 |
| 17.4 | 2.66 | 7.24 | 17.0 |
| 17.8 | 2.74 | 7.16 | 18.0 |
| 17.9 | 2.75 | 7.15 | 18.0 |
| 18.3 | 2.32 | 6.41 | 18.0 |
| 18.5 | 2.82 | 7.68 | 18.0 |
| 18.6 | 2.84 | 7.66 | 19.0 |
| Dmin | d | L | SSC |
| 20.0 | 3.02 | 8.58 | 20.0 |
| 20.1 | 3.04 | 8.56 | 20.0 |
| 20.2 | 3.06 | 8.54 | 20.0 |
| 20.3 | 3.07 | 8.53 | 20.0 |
| 20.4 | 3.09 | 8.51 | 20.0 |
| 20.5 | 3.11 | 8.49 | 20.0 |
| 20.7 | 3.15 | 8.45 | 21.0 |
| 20.8 | 3.17 | 8.43 | 21.0 |
| 21.0 | 3.18 | 9.0 | 21.0 |
| 21.1 | 3.2 | 8.98 | 21.0 |
| 21.2 | 3.22 | 8.96 | 21.0 |
| 21.3 | 3.23 | 8.95 | 21.0 |
| 21.4 | 3.25 | 8.93 | 21.0 |
| 21.5 | 3.27 | 8.91 | 22.0 |
| 21.7 | 3.31 | 8.87 | 22.0 |
| 21.9 | 3.34 | 8.84 | 22.0 |
| 22.0 | 3.32 | 9.44 | 22.0 |
| 22.3 | 3.37 | 9.39 | 22.0 |
| 22.4 | 3.34 | 9.42 | 22.0 |
| 22.4 | 3.39 | 9.37 | 22.0 |
| 22.5 | 3.41 | 9.35 | 22.0 |
| 22.6 | 3.43 | 9.33 | 23.0 |
| 22.9 | 3.48 | 9.28 | 23.0 |
| 23.0 | 3.46 | 9.87 | 23.0 |
| 23.1 | 3.48 | 9.85 | 23.0 |
| 23.2 | 3.5 | 9.83 | 23.0 |
| 24.2 | 3.66 | 10.24 | 24.0 |
| 24.3 | 3.67 | 10.23 | 24.0 |
| 24.4 | 3.69 | 10.21 | 24.0 |
| 24.41 | 3.64 | 10.26 | 24.0 |
| 24.6 | 3.73 | 10.17 | 25.0 |
| 24.7 | 3.75 | 10.15 | 25.0 |
| 24.9 | 3.78 | 10.12 | 25.0 |
| 25.1 | 3.82 | 10.68 | 25.0 |
| 25.2 | 3.84 | 10.66 | 25.0 |
| 25.3 | 3.85 | 10.65 | 25.0 |
| 25.4 | 3.87 | 10.63 | 25.0 |
| 25.5 | 3.89 | 10.61 | 26.0 |
| 25.7 | 3.93 | 10.57 | 26.0 |
| 25.8 | 3.95 | 10.55 | 26.0 |
| 25.9 | 3.96 | 10.54 | 26.0 |
| 26.0 | 3.95 | 11.12 | 26.0 |
| 26.1 | 3.97 | 14.0 | 26.0 |
| 26.2 | 3.99 | 11.08 | 26.0 |
| 26.3 | 4.0 | 11.07 | 26.0 |
| 26.4 | 4.02 | 11.05 | 26.0 |
| 26.5 | 4.04 | 11.03 | 26.0 |
| 26.6 | 4.08 | 11.01 | 27.0 |
| 26.7 | 4.08 | 10.99 | 27.0 |
| 26.9 | 4.1 | 10.96 | 27.0 |
| 27.8 | 4.25 | 14.0 | 28.0 |
| 28.1 | 4.27 | 11.95 | 28.0 |
| 28.2 | 4.29 | 11.93 | 28.0 |
| 28.5 | 4.34 | 11.88 | 28.0 |
| 28.58 | 4.36 | 11.86 | 29.0 |
| 28.6 | 4.36 | 11.86 | 29.0 |
| 32.8 | 5.01 | 13.53 | 33.0 |
| 32.9 | 5.02 | 13.52 | 33.0 |
